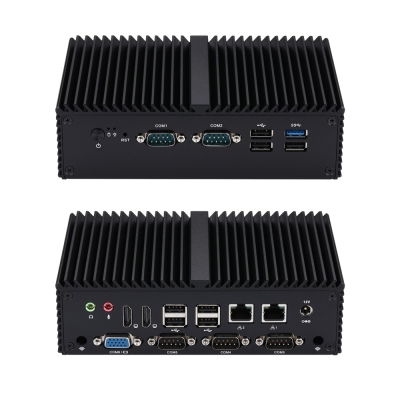

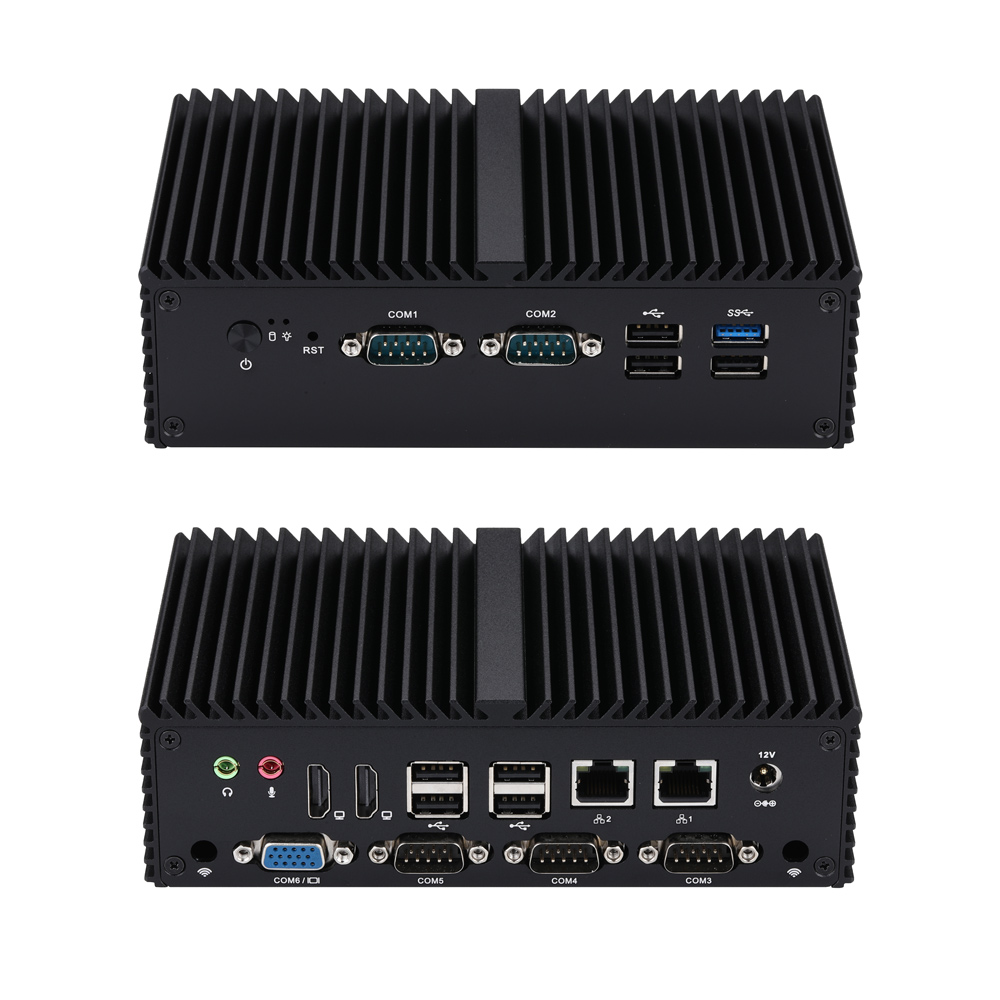

Mini PC K10900X S04 Series

K10900X embedded industrial PC with high-performance Intel N100 Alder Lake-N CPU. Offers dual HDMI, 6 COM ports, 8× USB, triple M.2, and dual 2.5G LAN—ideal for edge computing and automation control.

NIC
2 × Realtek 2.5G LAN
USB
2 × USB 3.0, 6 × USB 2.0
RS-232
6 × RS-232
RS-485
COM1/2 can be set up as RS-485
VGA
None
PS/2
None
GPIO
Yes
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

OVERVIEW

Main Features

  • Intel Alder Lake-N Processor

  • Intel Twin Lake-N Processor

  • 2 × HDMI

  • 2 × USB 3.0, 6 × USB 2.0, 6 × RS-232

  • 3 × M.2, 1 × SATA 3.0

  • 2 × Realtek 2.5 Gigabit LAN

SPECIFICATION

Processor System
CPUIntel Alder Lake-N Processor
Intel Twin Lake-N Processor
CPU TDPBy CPU
Memory1 × DDR5 SO-DIMM Socket (Up to 48G)
ChipsetBy CPU
GraphicsBy CPU
AudioRealtek HD Audio
Watch DogYes

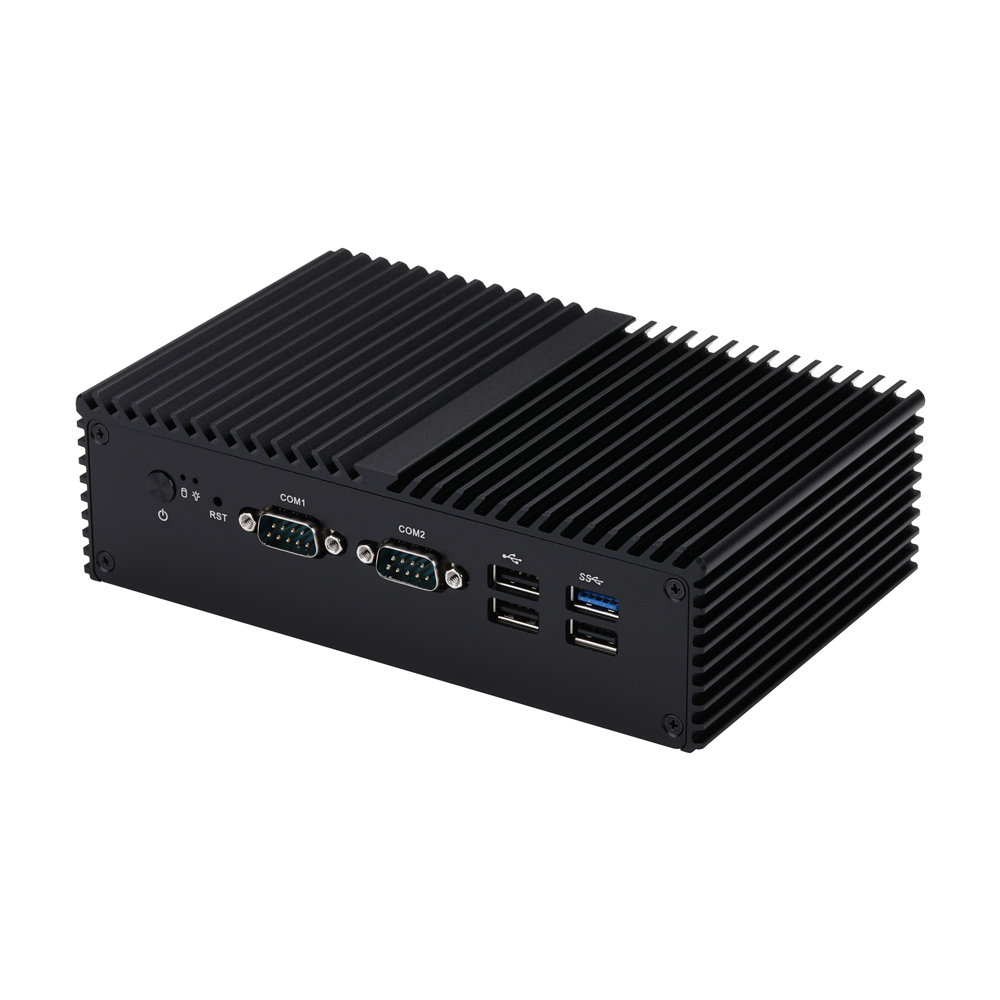

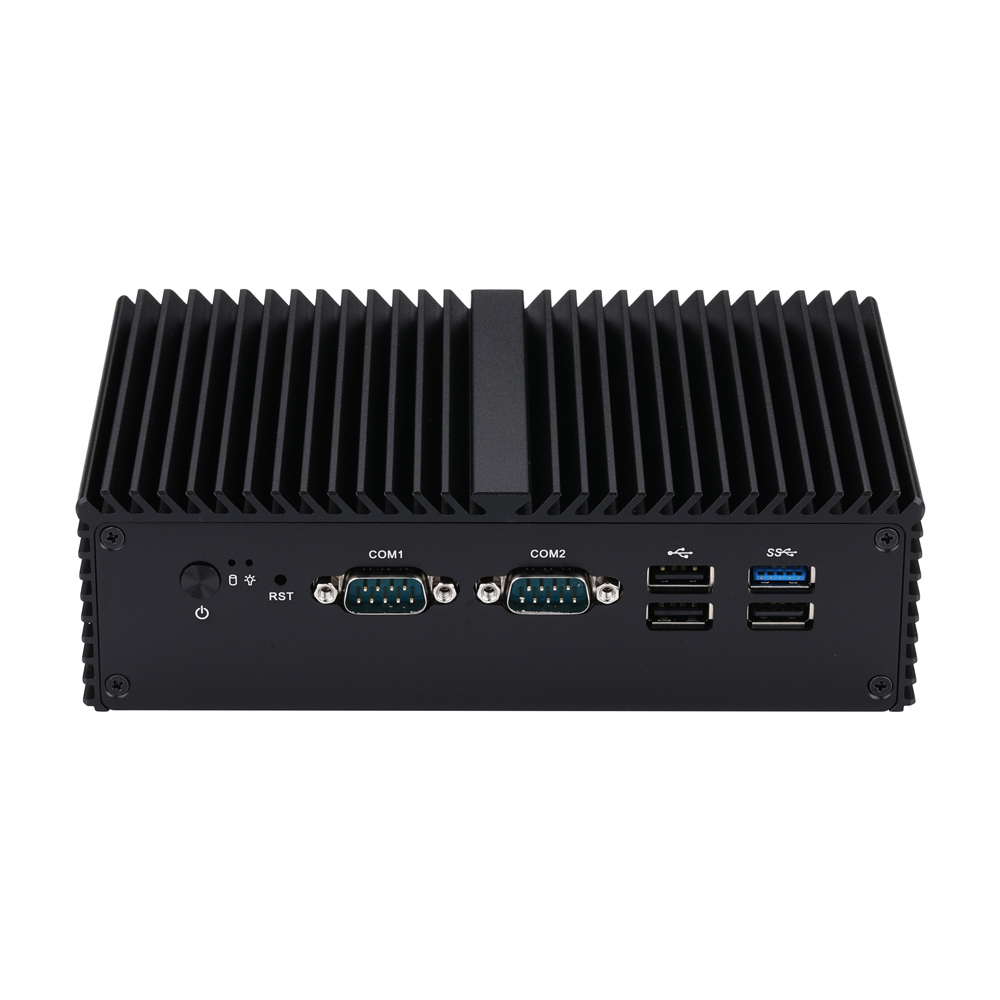

Front I/O
Power Button1 × Power Button, 1 × Reset Button
LED1 × Power LED, 1 × HDD LED
GPIO0
PS/20
USB2 × USB 2.0, 2 × USB 3.0
Serial Port2 × RS-232 (COM1/2 can be set up as RS-485)

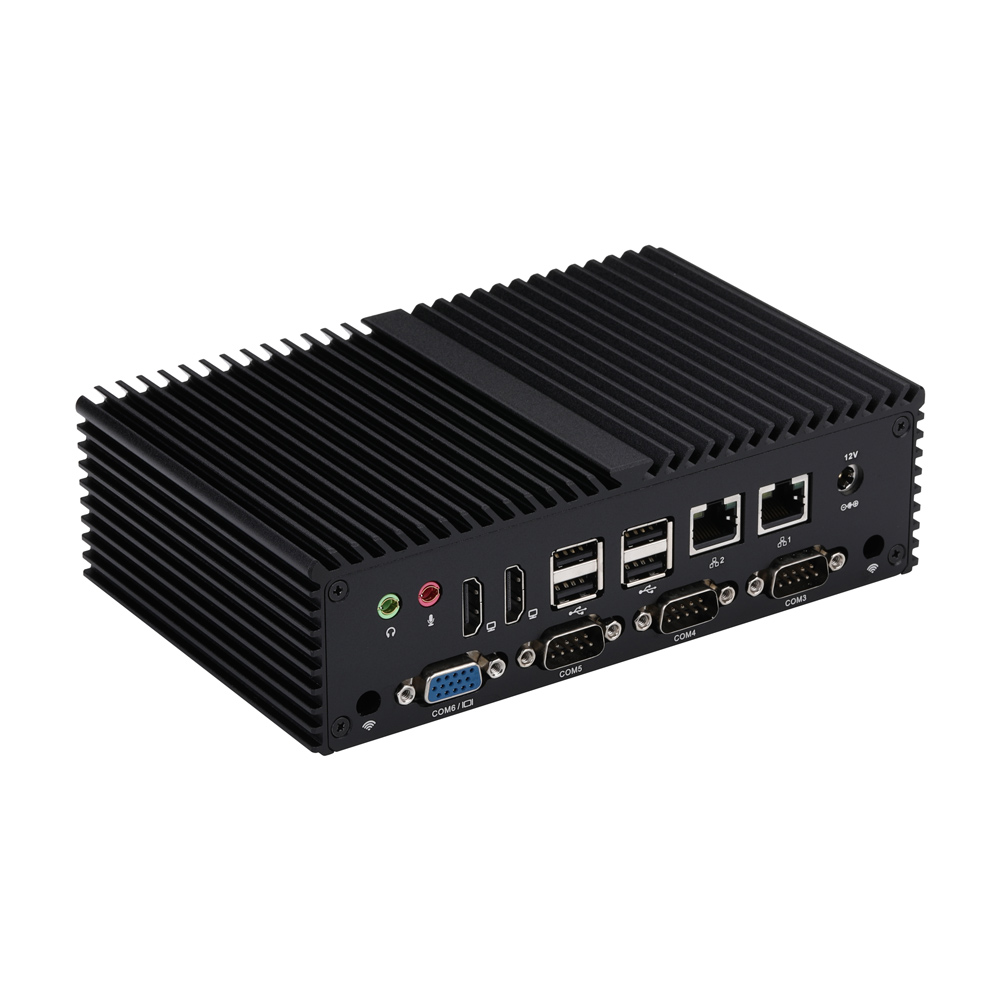

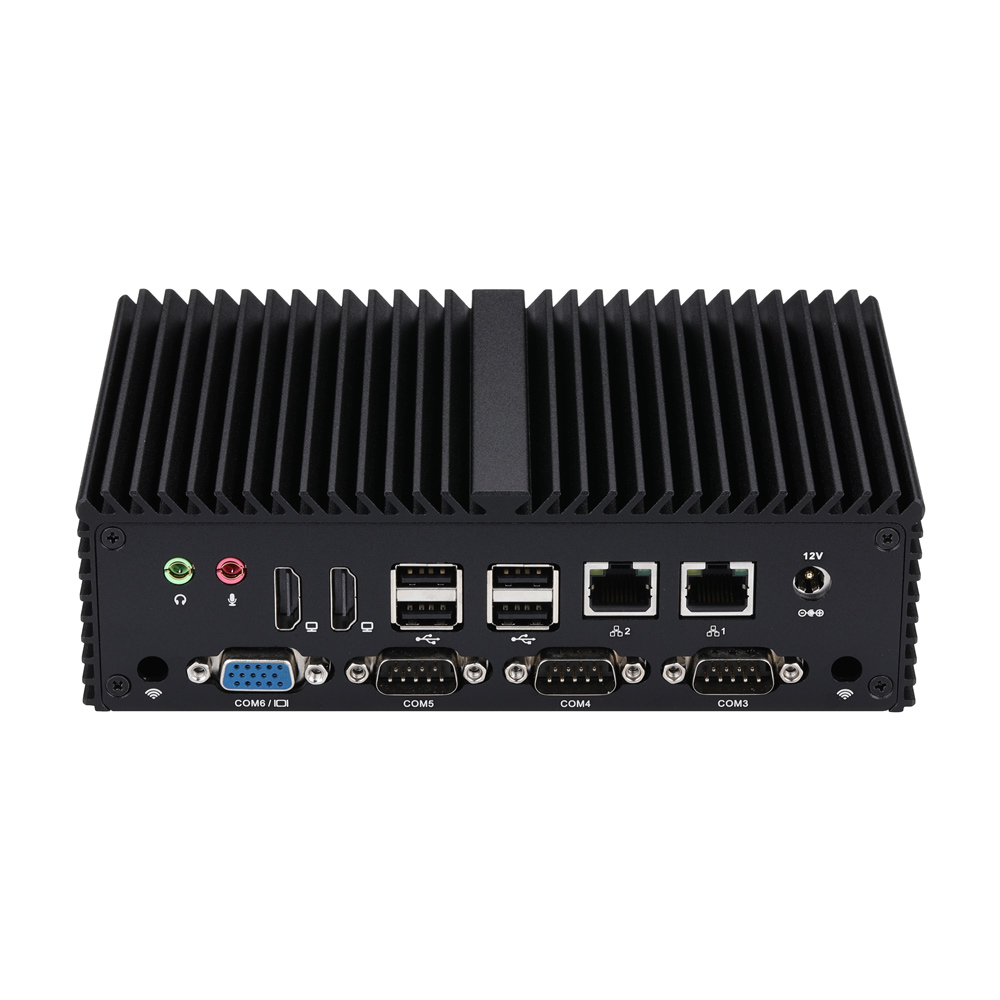

Rear I/O
Power1 × DC Jack
LAN2 × Realtek 2.5 Gigabit LAN
USB4 × USB 2.0
Display2 × HDMI
Serial Port4 × RS-232
Audio1 × Mic-in, 1 × Line-out
Storage
Type1 × 2.5-inch HDD/SSD
1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)

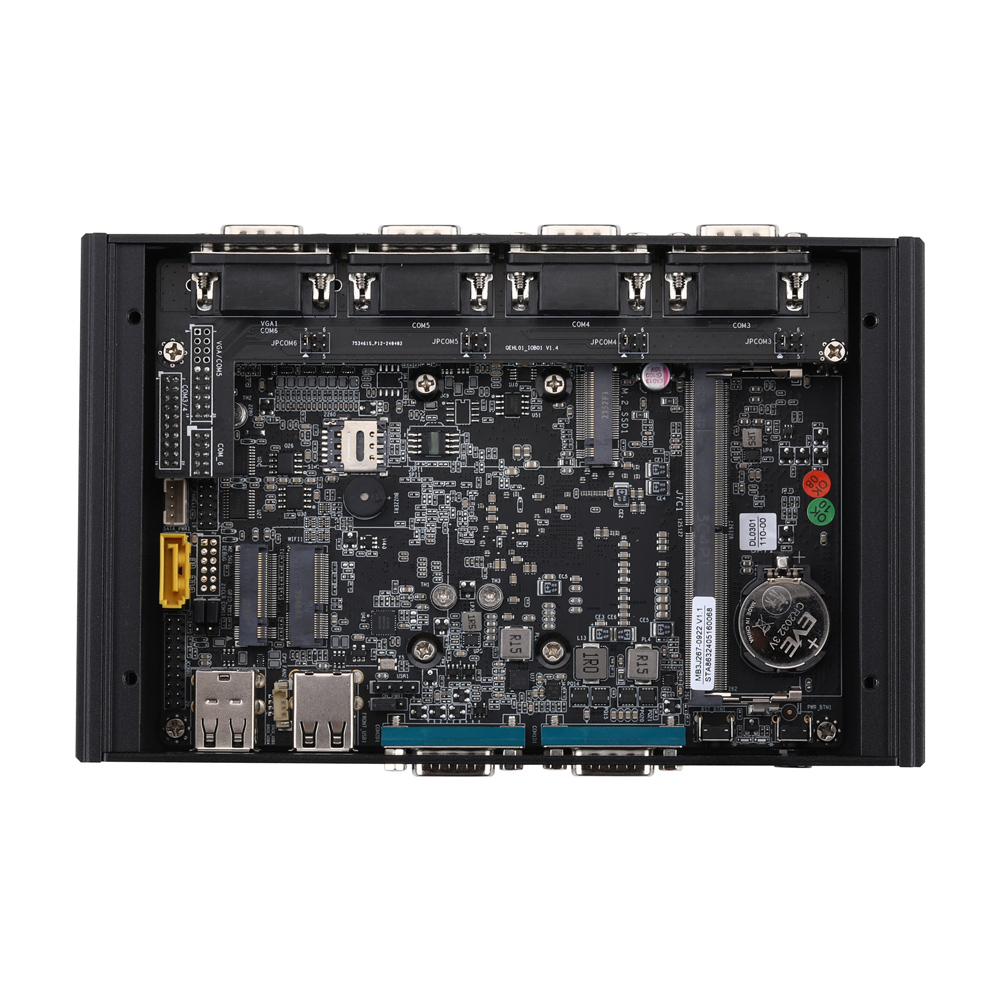

Expansion
M.21 × M.2 for SSD
(M key, Type: 2280, PCIe 3.0 × 1)
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052)
5G Mode Requires Customization
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
GPIO1, 2 × 5Pin, Pitch 2.0mm
VGA0
Serial Port0
SIM Card Slot1
Clear CMOS JumperYes, 1 × 3Pin, Pitch 2.54mm
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
Front Panel1, 2 × 5Pin, Pitch 2.0mm
Power Requirement
Power Adapter12V3A
DC Jack5.5mm, 2.5mm
Environmental
Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%
Mechanical
MaterialAluminium Alloy
Dimension178 × 111 × 52mm
Weight0.82kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design
OS Support
OSUEFI Windows 10, UEFI Linux

PACKING

Packing List

NO.CategoryQuantityRemark
1Mini PC1
2Silicone Mat4
3VESA Bracket1
4Screws for VESA Bracket1
5Power Adapter1
6AC Power Cord1
7Screws for SATA SSD/HDD1
8SATA cable for SSD/HDD1Option
9Antennas2Option
ItemQuantity
  • 1
    Mini PC
    1
  • 2
    Silicone Mat
    4
  • 3
    VESA Bracket
    1
  • 4
    Screws for VESA Bracket
    1
  • 5
    Power Adapter
    1
  • 6
    AC Power Cord
    1
  • 7
    Screws for SATA SSD/HDD
    1
  • 8
    SATA cable for SSD/HDD
    Option
    1
  • 9
    Antennas
    Option
    2

ORDERING

Ordering and Specifications Information

Quick Order Model: K10922X-S04

Ordering CodeCaseCode Name Processor TypeProcessor Number# of Cores# of ThreadsBase FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
K10911XS04Alder lake-N-N502--3.4GHz6MIntel UHD Graphics6W
K10921XS04Alder lake-N-N974--3.6GHz6MIntel UHD Graphics12W
K10922XS04Alder lake-N-N10044-3.4GHz6MIntel UHD Graphics6W
K10923XS04Alder lake-N-N20044-3.7GHz6MIntel UHD Graphics6W
K10931XS04Alder lake-NCore i3N30088-3.8GHz6MIntel UHD Graphics7W
K10932XS04Alder lake-NCore i3N30588-3.8GHz6MIntel UHD Graphics15W
K11022XS04Twin Lake-N-N15044-3.6GHz6MIntel Graphics6W
K11023XS04Twin Lake-N-N25044-3.8GHz6MIntel Graphics6W
K11031XS04Twin Lake-NCore i3N35088-3.9GHz6MIntel Graphics7W
K11032XS04Twin Lake-NCore i3N35588-3.9GHz6MIntel Graphics15W
K10911XS04
Case
S04
Code Name
Alder lake-N
Processor Type
-
Processor Number
N50
# of Cores
2
# of Threads
-
Base Frequency
-
Max Turbo Frequency
3.4GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
6W
K10921XS04
Case
S04
Code Name
Alder lake-N
Processor Type
-
Processor Number
N97
# of Cores
4
# of Threads
-
Base Frequency
-
Max Turbo Frequency
3.6GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
12W
K10922XS04
Case
S04
Code Name
Alder lake-N
Processor Type
-
Processor Number
N100
# of Cores
4
# of Threads
4
Base Frequency
-
Max Turbo Frequency
3.4GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
6W
K10923XS04
Case
S04
Code Name
Alder lake-N
Processor Type
-
Processor Number
N200
# of Cores
4
# of Threads
4
Base Frequency
-
Max Turbo Frequency
3.7GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
6W
K10931XS04
Case
S04
Code Name
Alder lake-N
Processor Type
Core i3
Processor Number
N300
# of Cores
8
# of Threads
8
Base Frequency
-
Max Turbo Frequency
3.8GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
7W
K10932XS04
Case
S04
Code Name
Alder lake-N
Processor Type
Core i3
Processor Number
N305
# of Cores
8
# of Threads
8
Base Frequency
-
Max Turbo Frequency
3.8GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
15W
K11022XS04
Case
S04
Code Name
Twin Lake-N
Processor Type
-
Processor Number
N150
# of Cores
4
# of Threads
4
Base Frequency
-
Max Turbo Frequency
3.6GHz
Cache
6M
Processor Graphics
Intel Graphics
TDP
6W
K11023XS04
Case
S04
Code Name
Twin Lake-N
Processor Type
-
Processor Number
N250
# of Cores
4
# of Threads
4
Base Frequency
-
Max Turbo Frequency
3.8GHz
Cache
6M
Processor Graphics
Intel Graphics
TDP
6W
K11031XS04
Case
S04
Code Name
Twin Lake-N
Processor Type
Core i3
Processor Number
N350
# of Cores
8
# of Threads
8
Base Frequency
-
Max Turbo Frequency
3.9GHz
Cache
6M
Processor Graphics
Intel Graphics
TDP
7W
K11032XS04
Case
S04
Code Name
Twin Lake-N
Processor Type
Core i3
Processor Number
N355
# of Cores
8
# of Threads
8
Base Frequency
-
Max Turbo Frequency
3.9GHz
Cache
6M
Processor Graphics
Intel Graphics
TDP
15W

Custom Options

CategoryVGA
K10922X-
K10922XV1
K10922XP-
K10922XPV1
K10922XPG-
K10922XPGV1
