Mini PC K30900SE S13 Series Mini PC K30900SE S13 Series Mini PC K30900SE S13 Series Mini PC K30900SE S13 Series Mini PC K30900SE S13 Series Mini PC K30900SE S13 Series Mini PC K30900SE S13 Series Mini PC K30900SE S13 Series

Mini PC K30900SE S13 Series

Intel, 8th, Whiskey, Lake-U, Processor,, Intel, 8th, Coffee, Lake-U, Processor,, Intel, 10th, Comet, lake-U, Processor, 1, ×, Display, Port,, 1, ×, HDMI, 3, ×, USB, 3.0,, 1, ×, USB, 2.0
, 3, ×, M.2,, 1, ×, SATA, 3.0, 1, ×, RS-232, (RJ-45), 6, ×, Intel, I225-V/I226-V, 2.5, Gigabit, LAN, 2, ×, Intel, JL82599ES, SFP+

Total of Network Interfaces
8
SFP(+)
2
10G RJ45
0
2.5G RJ45
6
1G RJ45
-
Serial Ports
1
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

  • Intel 8th Whiskey Lake-U Processor

  • Intel 8th Coffee Lake-U Processor

  • Intel 10th Comet lake-U Processor

  • 1 × Display Port, 1 × HDMI

  • 3 × USB 3.0, 1 × USB 2.0

  • 3 × M.2, 1 × SATA 3.0

  • 1 × RS-232 (RJ-45)

  • 6 × Intel I225-V/I226-V 2.5 Gigabit LAN

  • 2 × Intel JL82599ES SFP+

Specifications

Processor System
CPU• Intel 8thWhiskey Lake-U Processor
• Intel 8th Coffee Lake-U Processor
• Intel 10th Comet lake-U Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket
(Up to 32G, 2133/2400MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset6 × Intel I225-V/I226-V 2.5 Gigabit LAN
2 × Intel JL82599ES SFP+
Watch DogYes

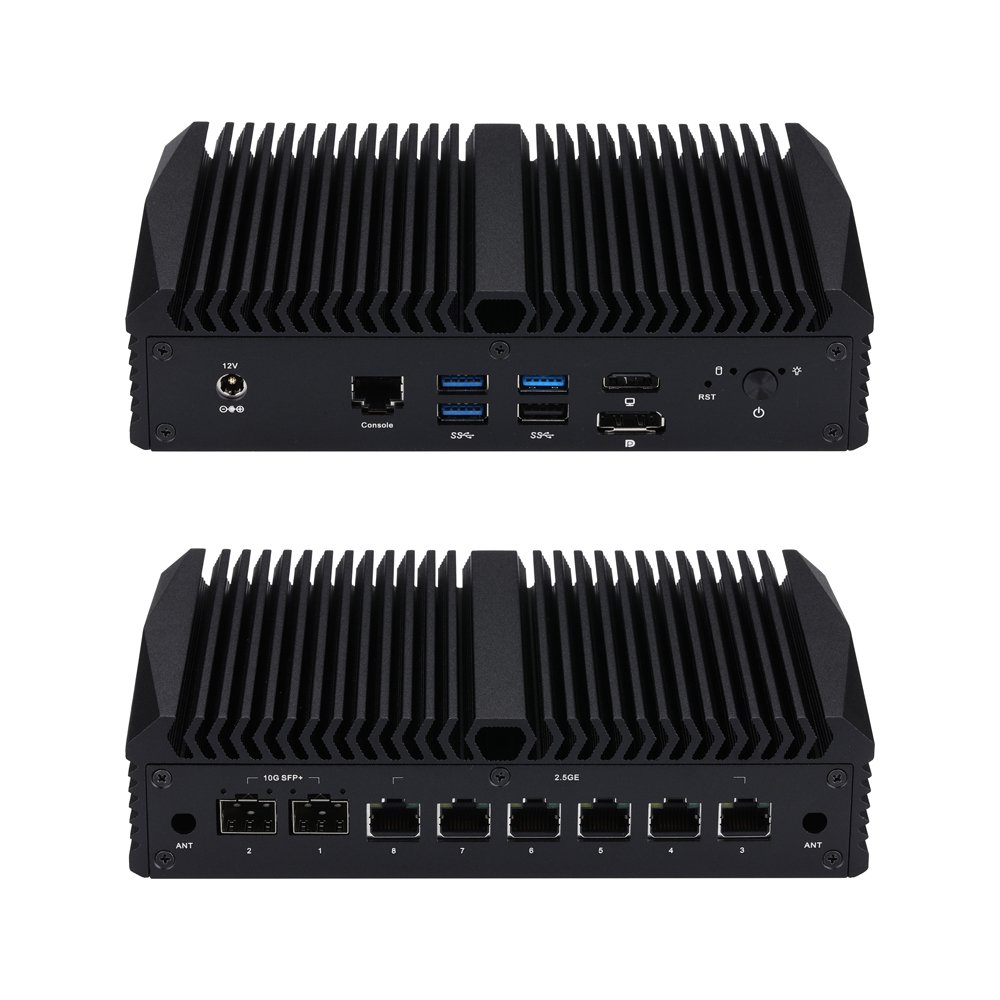

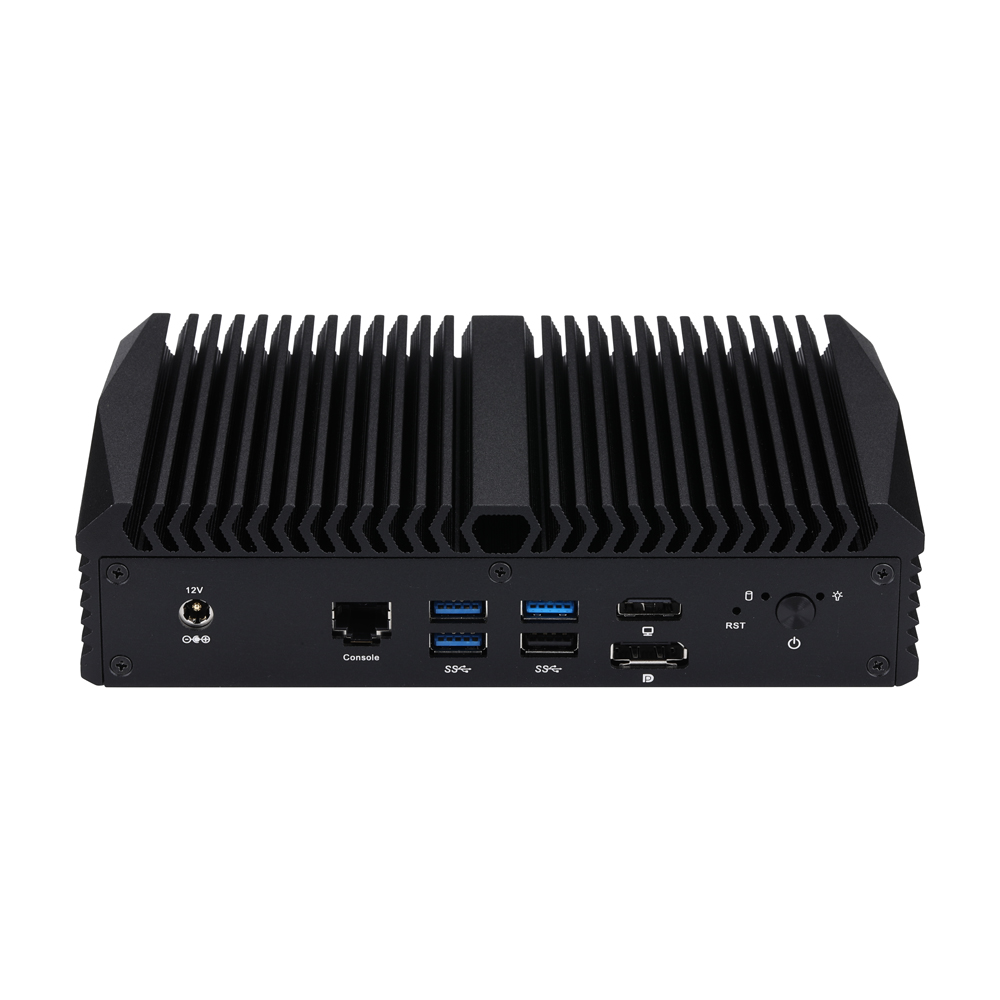

Front I/O
Power Button1 × Power Button, 1 × Reset Button
LED1 × Power LED, 1 × HDD LED
USB3 × USB 3.0, 1 × USB 2.0
Power1 × DC Jack
Video Output1 × HDMI, 1 × Display Port
Serial Port1 × RS-232 Port (RJ-45)

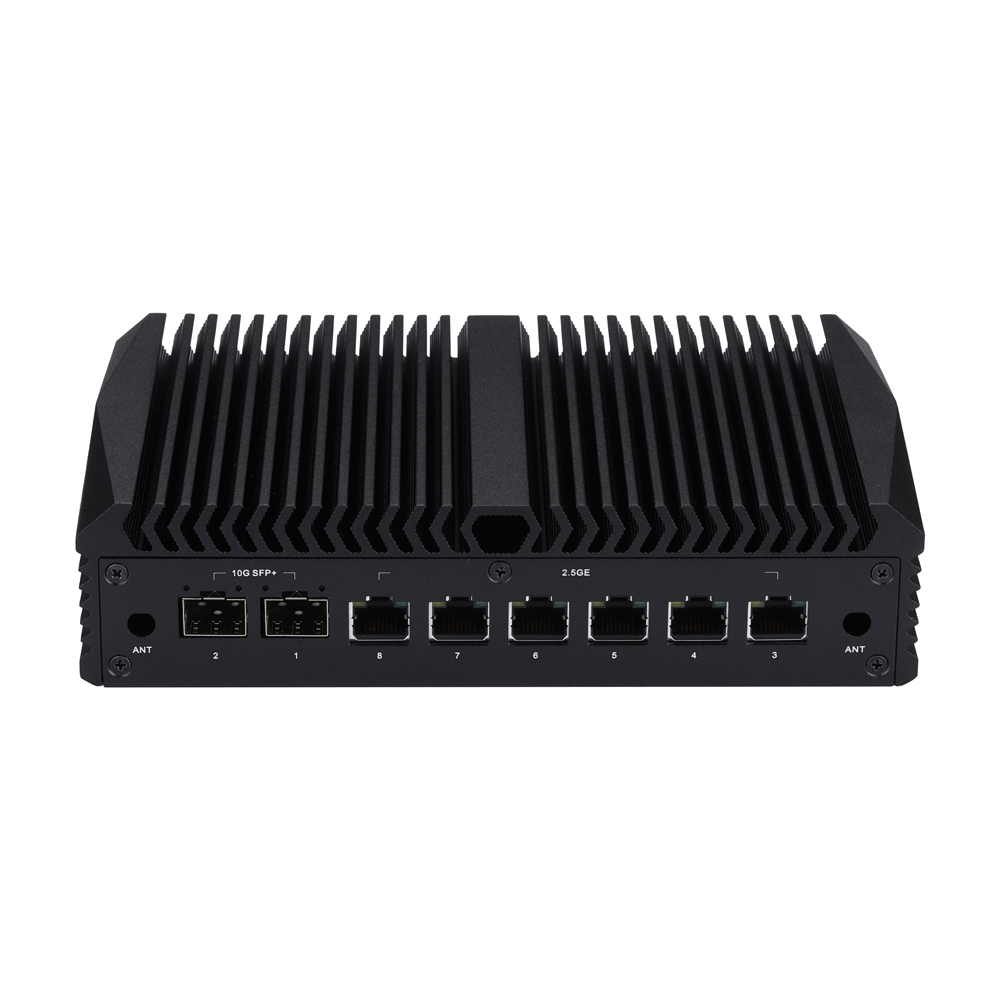

Rear I/O
LAN6 × Intel I225-V/I226-V 2.5 Gigabit LAN
SFP+2 × Intel JL82599ES SFP+
Max. speed of 12Gbps for both interfaces
Storage
Type1 × 2.5-inch HDD/SSD
1 × M.2 for SSD, (M key, Type: 2280, PCIe 3.0 × 1)
Expansion
M.21 × M.2 for SSD
(M key, Type: 2280, PCIe 3.0 × 1)
M.21 × M.2 for 4G/5G
(B key, Type: 3042/3052)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Only For Core Series
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear JumperYes, 1 × 3Pin, Pitch 2.0mm
Power Button1 × Power Button, 1 × Reset Button
Power Requirement
Power Adapter12V3A
DC Jack5.5mm, 2.5mm
Environmental
Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%
Mechanical
MaterialAluminium Alloy
Dimension196 × 122 × 47mm
Weight1.26kg
MountingVESA Mounting Bracket
Packaging Dimension285 × 260 × 93mm
Kensington LockNo
Cooling ModeFanless Design
OS Support
OSWindows 10, Linux

In the box

Packing List

NO.CategoryQuantityRemark
1Mini PC1
2Silicone Mat4
3VESA Bracket1
4Screws for VESA Bracket1
5Power Adapter1
6AC Power Cord1
7Screws for SATA SSD/HDD1
8SATA cable for SSD/HDD1Option
9Antennas2Option
ItemQuantity
  • 1
    Mini PC
    1
  • 2
    Silicone Mat
    4
  • 3
    VESA Bracket
    1
  • 4
    Screws for VESA Bracket
    1
  • 5
    Power Adapter
    1
  • 6
    AC Power Cord
    1
  • 7
    Screws for SATA SSD/HDD
    1
  • 8
    SATA cable for SSD/HDD
    Option
    1
  • 9
    Antennas
    Option
    2

Models & options

Ordering and Specifications Information

Quick Order Model: K30912SE-S13

Ordering CodeCaseCode NameProcessor TypeProcessor NumberCoresThreadsBase FrequencyMax Turbo FrequencyCacheProcessor GraphicsTDP
K30912SES13Whiskey LakeCeleron4305U222.2GHz/2MIntel UHD Graphics15W
K30921SES13Whiskey LakePentium5405U242.3GHz/2MIntel UHD Graphics15W
K30931SES13Whiskey LakeCore i38145U242.1GHz3.9GHz4MIntel UHD Graphics15W
K30951SES13Whiskey LakeCore i58265U481.6GHz3.9GHz6MIntel UHD Graphics15W
K30971SES13Whiskey LakeCore i78565U481.8GHz4.6GHz8MIntel UHD Graphics15W
K30952SES13Coffee LakeCore i58260U481.6GHz3.9GHz6MIntel UHD Graphics 62015W
K31011SES13Comet LakeCeleron5205U221.9GHz/2MIntel UHD Graphics15W
K31012SES13Comet LakeCeleron5305U222.3GHz/2MIntel UHD Graphics15W
K31021SES13Comet LakePentium6405U242.4GHz/2MIntel UHD Graphics15W
K31031SES13Comet LakeCore i310110U242.1GHz4.1GHz4MIntel UHD Graphics15W
K31051SES13Comet LakeCore i510210U481.6GHz4.2GHz6MIntel UHD Graphics15W
K31071SES13Comet LakeCore i710610U481.8GHz4.9GHz8MIntel UHD Graphics15W
K31072SES13Comet LakeCore i710810U6121.1GHz4.9GHz12MIntel UHD Graphics15W
K31073SES13Comet LakeCore i710710U6121.1GHz4.7GHz12MIntel UHD Graphics15W
K30912SE4305U
Case
S13
Code Name
Whiskey Lake
Processor Type
Celeron
Cores
2
Threads
2
Base Frequency
2.2GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
K30921SE5405U
Case
S13
Code Name
Whiskey Lake
Processor Type
Pentium
Cores
2
Threads
4
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
K30931SE8145U
Case
S13
Code Name
Whiskey Lake
Processor Type
Core i3
Cores
2
Threads
4
Base Frequency
2.1GHz
Max Turbo Frequency
3.9GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W
K30951SE8265U
Case
S13
Code Name
Whiskey Lake
Processor Type
Core i5
Cores
4
Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
3.9GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
15W
K30971SE8565U
Case
S13
Code Name
Whiskey Lake
Processor Type
Core i7
Cores
4
Threads
8
Base Frequency
1.8GHz
Max Turbo Frequency
4.6GHz
Cache
8M
Processor Graphics
Intel UHD Graphics
TDP
15W
K30952SE8260U
Case
S13
Code Name
Coffee Lake
Processor Type
Core i5
Cores
4
Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
3.9GHz
Cache
6M
Processor Graphics
Intel UHD Graphics 620
TDP
15W
K31011SE5205U
Case
S13
Code Name
Comet Lake
Processor Type
Celeron
Cores
2
Threads
2
Base Frequency
1.9GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
K31012SE5305U
Case
S13
Code Name
Comet Lake
Processor Type
Celeron
Cores
2
Threads
2
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
K31021SE6405U
Case
S13
Code Name
Comet Lake
Processor Type
Pentium
Cores
2
Threads
4
Base Frequency
2.4GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
K31031SE10110U
Case
S13
Code Name
Comet Lake
Processor Type
Core i3
Cores
2
Threads
4
Base Frequency
2.1GHz
Max Turbo Frequency
4.1GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W
K31051SE10210U
Case
S13
Code Name
Comet Lake
Processor Type
Core i5
Cores
4
Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
4.2GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
15W
K31071SE10610U
Case
S13
Code Name
Comet Lake
Processor Type
Core i7
Cores
4
Threads
8
Base Frequency
1.8GHz
Max Turbo Frequency
4.9GHz
Cache
8M
Processor Graphics
Intel UHD Graphics
TDP
15W
K31072SE10810U
Case
S13
Code Name
Comet Lake
Processor Type
Core i7
Cores
6
Threads
12
Base Frequency
1.1GHz
Max Turbo Frequency
4.9GHz
Cache
12M
Processor Graphics
Intel UHD Graphics
TDP
15W
K31073SE10710U
Case
S13
Code Name
Comet Lake
Processor Type
Core i7
Cores
6
Threads
12
Base Frequency
1.1GHz
Max Turbo Frequency
4.7GHz
Cache
12M
Processor Graphics
Intel UHD Graphics
TDP
15W

PC Case Options

CategorySATA Support
S13Yes
1U15Yes

Custom Options

CategoryDescription
USB 2.06
GPIO1
RS-4852
TPM 2.01 (SLB9665)
