Mini PC K30900X S20 Series

Integrated 10th generation low-power Intel Core processor i3-10110U, dual 2.5G Intel network card, DP+HDMI+VGA triple display, DDR4 memory, M.2 NVME, SATA3.0, up to 6 serial ports, 8 USB, 2 RS485 inte

NIC
USB
RS-232
RS-485
VGA
PS/2
GPIO

Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

OVERVIEW

Main Features

Intel 8th Whiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
1 × Display Port, 1 × HDMI, 1 × VGA
4 × USB 3.0, 4 × USB 2.0
2 × M.2, 1 × Mini PCIe, 1 × SATA 3.0
6 × RS-232, 1 × PS/2
2 × Intel I225-V/I226-V 2.5 Gigabit LAN

SPECIFICATION

Processor System
CPU	Intel 8thWhiskey Lake-U Processor Intel 8th Coffee Lake-U Processor Intel 10th Comet lake-U Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	2 × Intel I225-V/I226-V 2.5 Gigabit LAN
Audio	Realtek HD Audio
Watch Dog	Yes

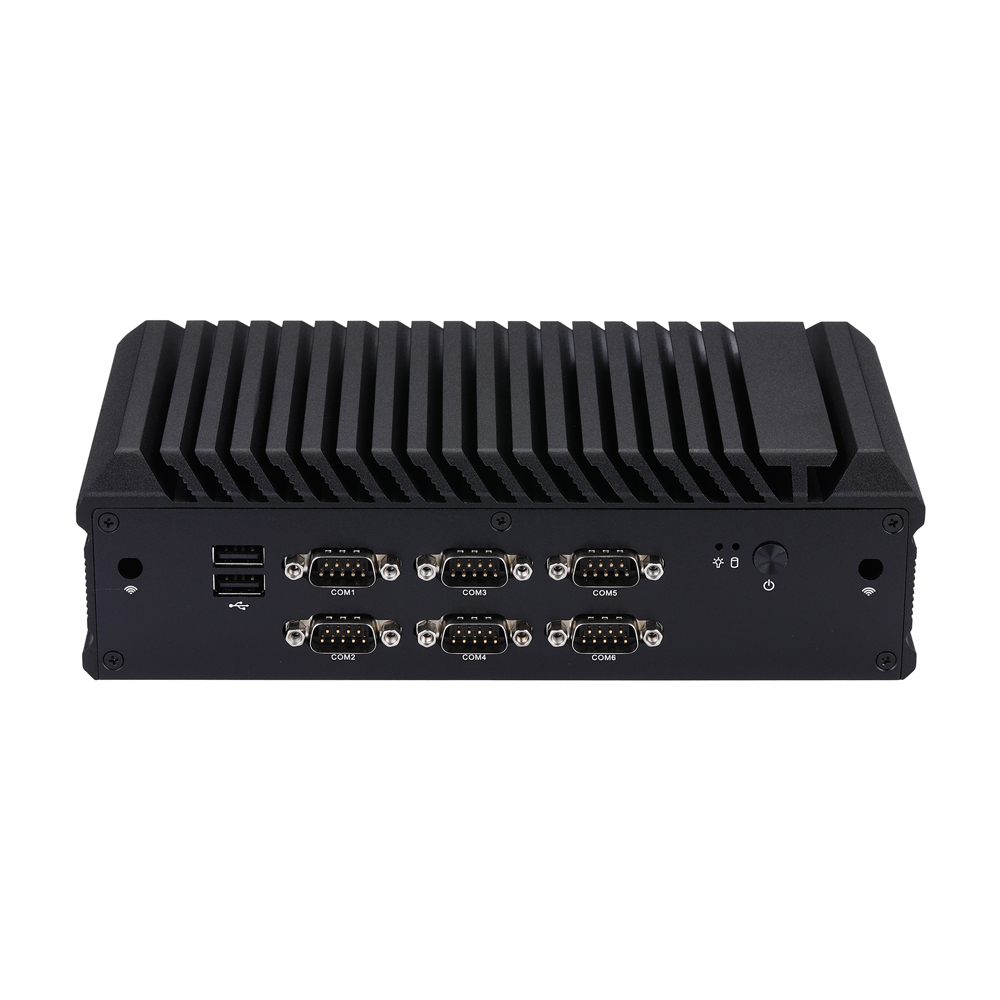

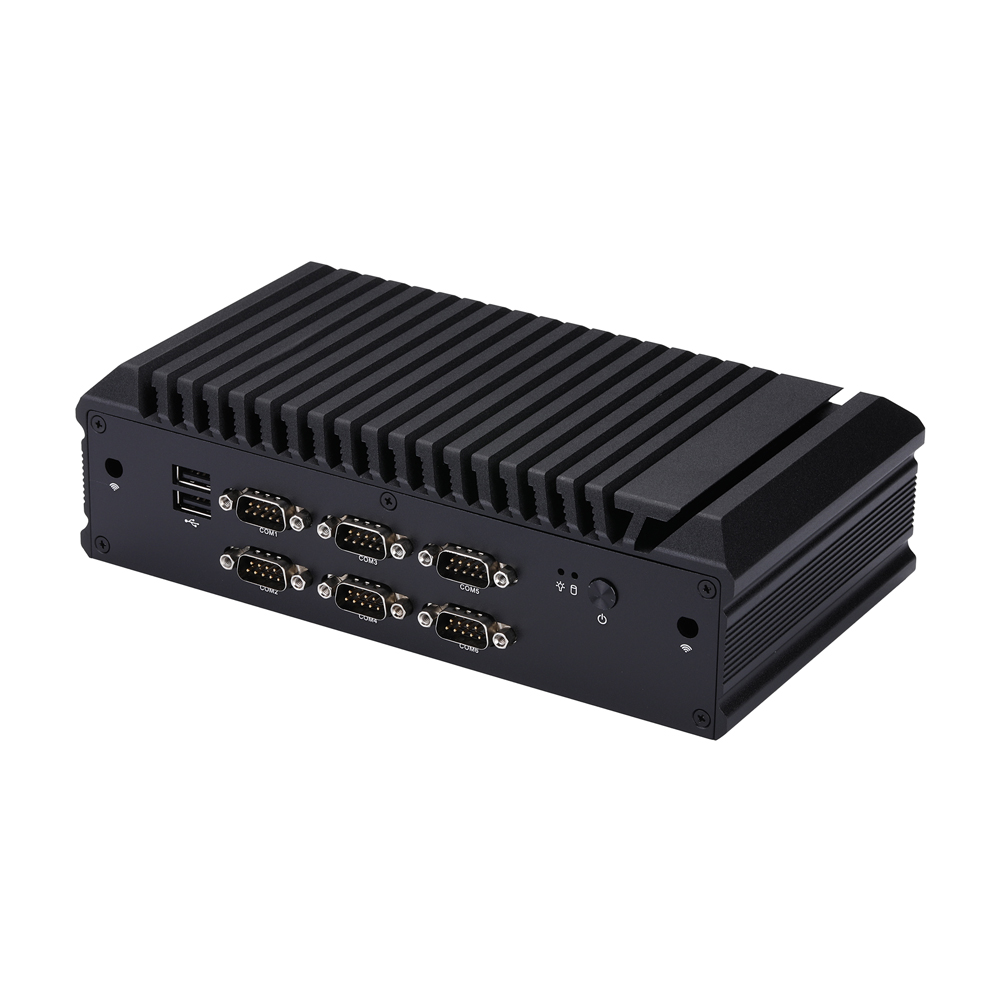

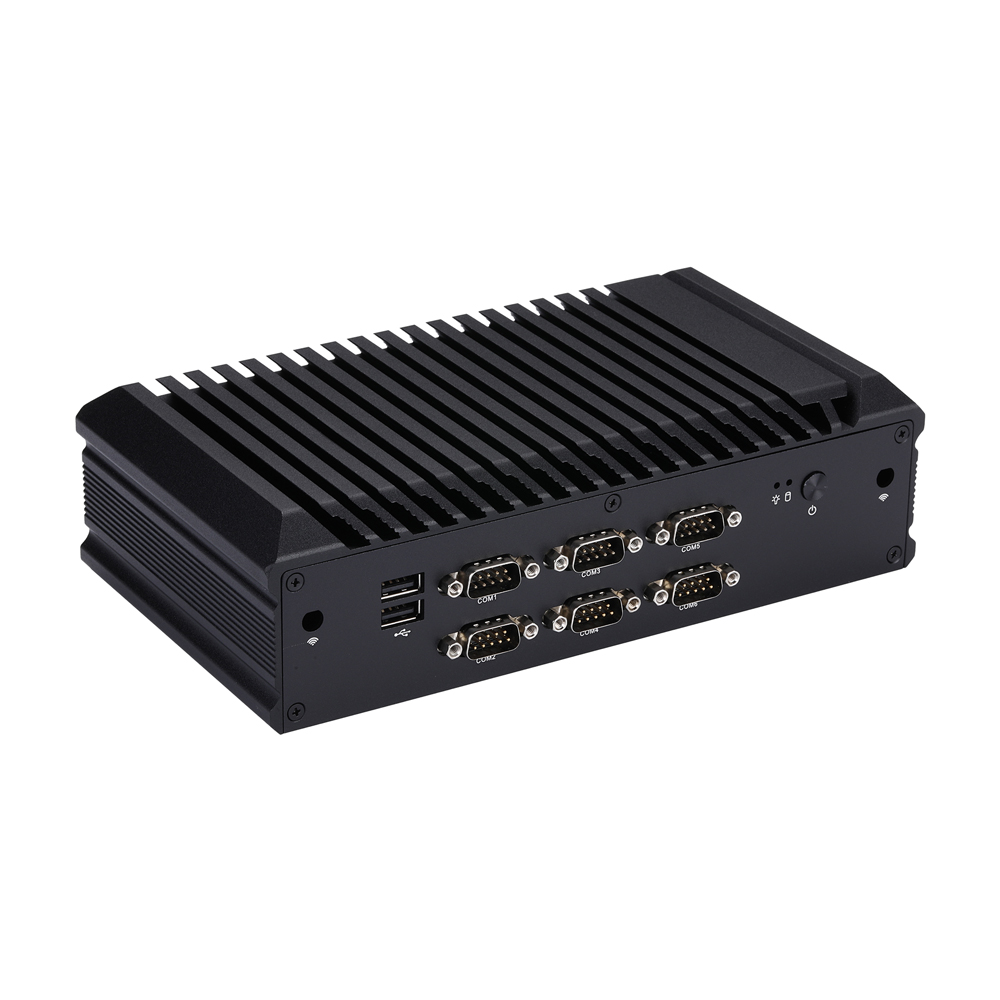

Front I/O
Power Button	1
LED	1 × Power LED, 1 × HDD LED
USB	2 × USB 2.0 (Not for 5405U)
Serial Port	6 × RS-232 (COM1/2 can be set up as RS-485, Support 5V/12V)

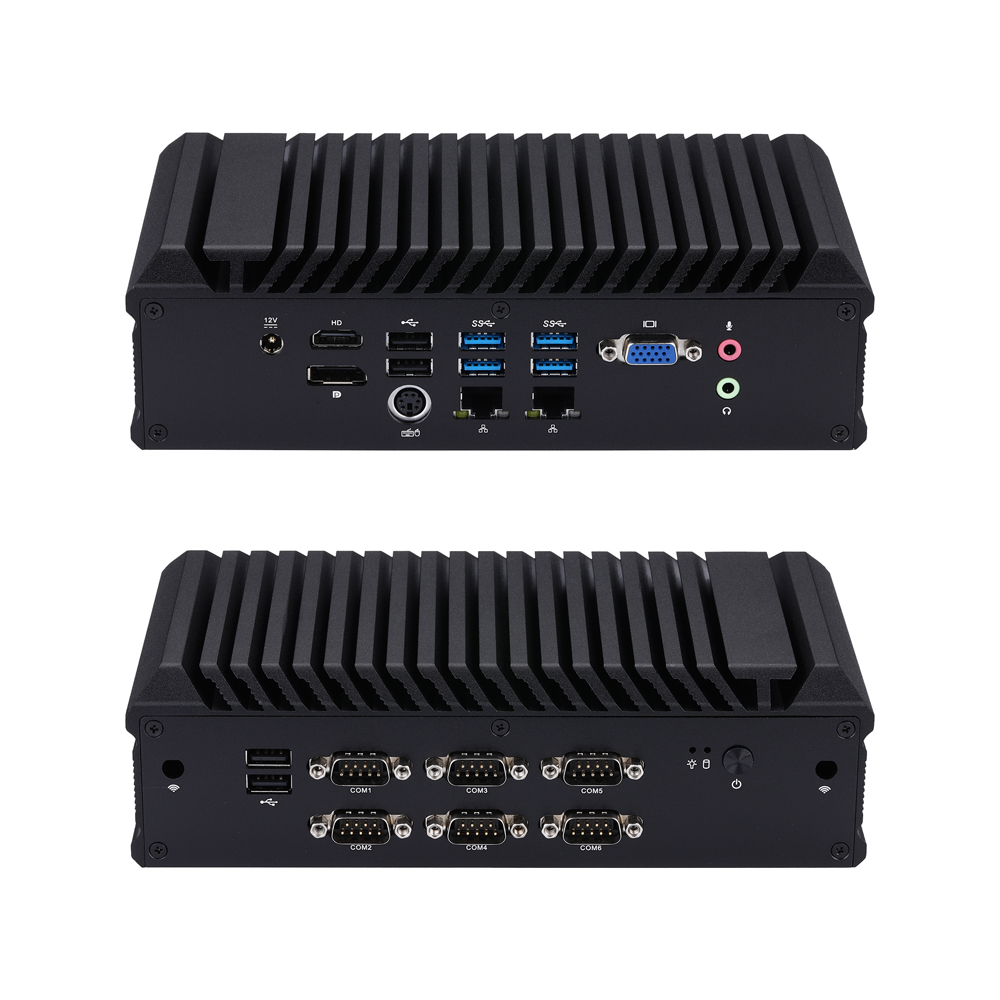

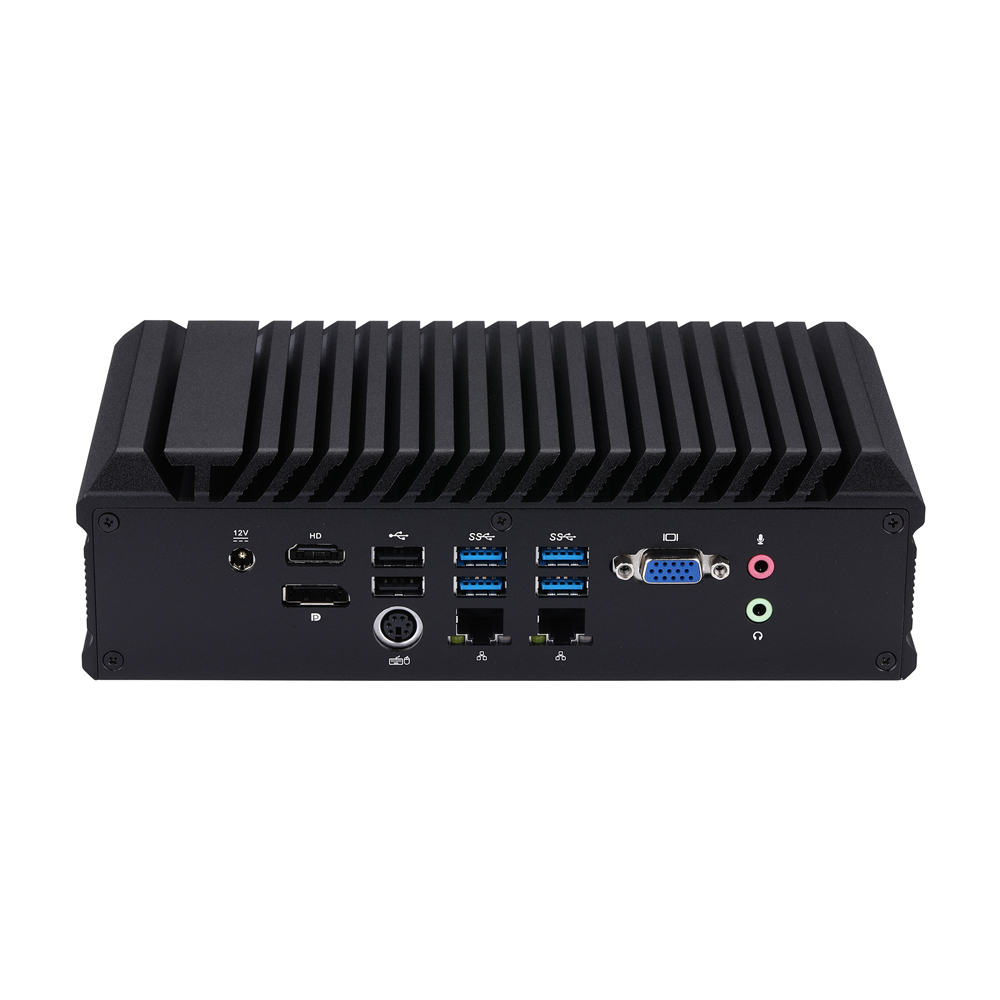

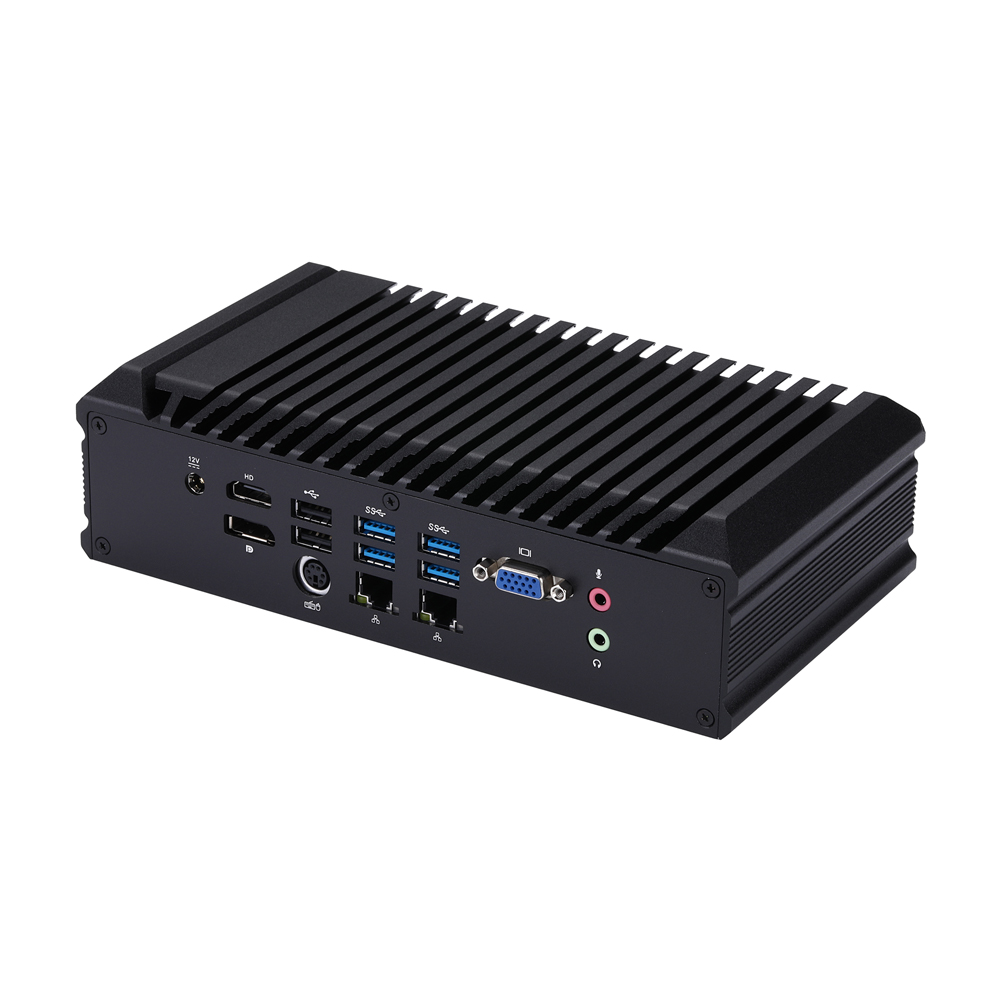

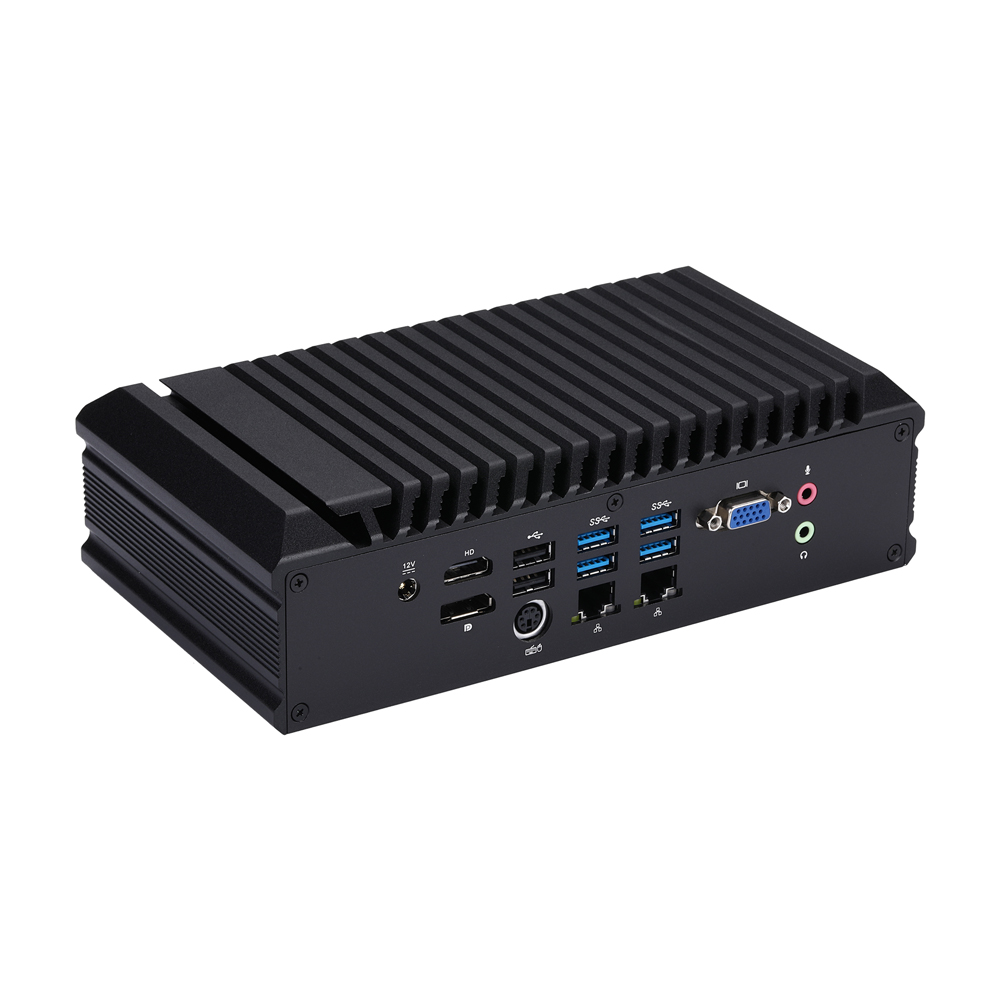

Rear I/O
Power	1 × DC Jack
Video Output	1 × Display Port, 1 × HDMI, 1 × VGA
LAN	2 × Intel I225-V/I226-V 2.5 Gigabit LAN
USB	4 × USB 3.0, 2 × USB 2.0
Audio	1 × Mic-in, 1 × Line-out
PS/2	1 × PS/2 (Mouse or Keyboard)
Storage
Type	1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280)
Expansion
Mini PCIe	1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
M.2	1 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO	1, 2 × 5Pin, Pitch 2.0mm
RS-485	2
DC-in	No
Power Requirement
Power Adapter	12V3A
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	221 × 121 × 62mm
Weight	1.40kg
Mounting	VESA Mounting Bracket
Packaging Dimension	285 × 260 × 93mm
Kensington Lock	No
Cooling Mode	Fanless Design
OS Support
OS	Windows 10, Linux

PACKING

Packing List

NO.	Category	Quantity	Remark
1	Mini PC	1
2	Silicone Mat	4
3	VESA Bracket	1
4	Screws for VESA Bracket	1
5	Power Adapter	1
6	AC Power Cord	1
7	Screws for SATA SSD/HDD	1
8	SATA cable for SSD/HDD	1	Option
9	Antennas	2	Option

ItemQuantity

1
Mini PC
1
2
Silicone Mat
4
3
VESA Bracket
1
4
Screws for VESA Bracket
1
5
Power Adapter
1
6
AC Power Cord
1
7
Screws for SATA SSD/HDD
1
8
SATA cable for SSD/HDD
Option
1
9
Antennas
Option
2

ORDERING

Ordering and Specifications Information

Quick Order Model: K1012X-S20

Ordering Code	Case	Code Name	Processor Type	Processor Number	Cores	Threads	Base Frequency	Max Turbo Frequency	Cache	Processor Graphics	TDP
K1012X K30912X	S20	Whiskey Lake	Celeron	4305U	2	2	2.2GHz	/	2M	Intel UHD Graphics	15W
K1020X K30921X	S20	Whiskey Lake	Pentium	5405U	2	4	2.3GHz	/	2M	Intel UHD Graphics	15W
K1030X K30931X	S20	Whiskey Lake	Core i3	8145U	2	4	2.1GHz	3.9GHz	4M	Intel UHD Graphics	15W
K1051X K30951X	S20	Whiskey Lake	Core i5	8265U	4	8	1.6GHz	3.9GHz	6M	Intel UHD Graphics	15W
K1070X K30971X	S20	Whiskey Lake	Core i7	8565U	4	8	1.8GHz	4.6GHz	8M	Intel UHD Graphics	15W
K1052X K30952X	S20	Coffee Lake	Core i5	8260U	4	8	1.6GHz	3.9GHz	6M	Intel UHD Graphics 620	15W
K1015X K31011X	S20	Comet Lake	Celeron	5205U	2	2	1.9GHz	/	2M	Intel UHD Graphics	15W
K1016X K31012X	S20	Comet Lake	Celeron	5305U	2	2	2.3GHz	/	2M	Intel UHD Graphics	15W
K1025X K31021X	S20	Comet Lake	Pentium	6405U	2	4	2.4GHz	/	2M	Intel UHD Graphics	15W
K1035X K31031X	S20	Comet Lake	Core i3	10110U	2	4	2.1GHz	4.1GHz	4M	Intel UHD Graphics	15W
K1055X K31051X	S20	Comet Lake	Core i5	10210U	4	8	1.6GHz	4.2GHz	6M	Intel UHD Graphics	15W
K1075X K31071X	S20	Comet Lake	Core i7	10610U	4	8	1.8GHz	4.9GHz	8M	Intel UHD Graphics	15W
K1076X K31072X	S20	Comet Lake	Core i7	10810U	6	12	1.1GHz	4.9GHz	12M	Intel UHD Graphics	15W
K1077X K31073X	S20	Comet Lake	Core i7	10710U	6	12	1.1GHz	4.7GHz	12M	Intel UHD Graphics	15W

K1012X
K30912X
4305U

Case: S20
Code Name: Whiskey Lake
Processor Type: Celeron
Cores: 2
Threads: 2
Base Frequency: 2.2GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel UHD Graphics
TDP: 15W

K1020X
K30921X
5405U

Case: S20
Code Name: Whiskey Lake
Processor Type: Pentium
Cores: 2
Threads: 4
Base Frequency: 2.3GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel UHD Graphics
TDP: 15W

K1030X
K30931X
8145U

Case: S20
Code Name: Whiskey Lake
Processor Type: Core i3
Cores: 2
Threads: 4
Base Frequency: 2.1GHz
Max Turbo Frequency: 3.9GHz
Cache: 4M
Processor Graphics: Intel UHD Graphics
TDP: 15W

K1051X
K30951X
8265U

Case: S20
Code Name: Whiskey Lake
Processor Type: Core i5
Cores: 4
Threads: 8
Base Frequency: 1.6GHz
Max Turbo Frequency: 3.9GHz
Cache: 6M
Processor Graphics: Intel UHD Graphics
TDP: 15W

K1070X
K30971X
8565U

Case: S20
Code Name: Whiskey Lake
Processor Type: Core i7
Cores: 4
Threads: 8
Base Frequency: 1.8GHz
Max Turbo Frequency: 4.6GHz
Cache: 8M
Processor Graphics: Intel UHD Graphics
TDP: 15W

K1052X
K30952X
8260U

Case: S20
Code Name: Coffee Lake
Processor Type: Core i5
Cores: 4
Threads: 8
Base Frequency: 1.6GHz
Max Turbo Frequency: 3.9GHz
Cache: 6M
Processor Graphics: Intel UHD Graphics 620
TDP: 15W

K1015X
K31011X
5205U

Case: S20
Code Name: Comet Lake
Processor Type: Celeron
Cores: 2
Threads: 2
Base Frequency: 1.9GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel UHD Graphics
TDP: 15W

K1016X
K31012X
5305U

Case: S20
Code Name: Comet Lake
Processor Type: Celeron
Cores: 2
Threads: 2
Base Frequency: 2.3GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel UHD Graphics
TDP: 15W

K1025X
K31021X
6405U

Case: S20
Code Name: Comet Lake
Processor Type: Pentium
Cores: 2
Threads: 4
Base Frequency: 2.4GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel UHD Graphics
TDP: 15W

K1035X
K31031X
10110U

Case: S20
Code Name: Comet Lake
Processor Type: Core i3
Cores: 2
Threads: 4
Base Frequency: 2.1GHz
Max Turbo Frequency: 4.1GHz
Cache: 4M
Processor Graphics: Intel UHD Graphics
TDP: 15W

K1055X
K31051X
10210U

Case: S20
Code Name: Comet Lake
Processor Type: Core i5
Cores: 4
Threads: 8
Base Frequency: 1.6GHz
Max Turbo Frequency: 4.2GHz
Cache: 6M
Processor Graphics: Intel UHD Graphics
TDP: 15W

K1075X
K31071X
10610U

Case: S20
Code Name: Comet Lake
Processor Type: Core i7
Cores: 4
Threads: 8
Base Frequency: 1.8GHz
Max Turbo Frequency: 4.9GHz
Cache: 8M
Processor Graphics: Intel UHD Graphics
TDP: 15W

K1076X
K31072X
10810U

Case: S20
Code Name: Comet Lake
Processor Type: Core i7
Cores: 6
Threads: 12
Base Frequency: 1.1GHz
Max Turbo Frequency: 4.9GHz
Cache: 12M
Processor Graphics: Intel UHD Graphics
TDP: 15W

K1077X
K31073X
10710U

Case: S20
Code Name: Comet Lake
Processor Type: Core i7
Cores: 6
Threads: 12
Base Frequency: 1.1GHz
Max Turbo Frequency: 4.7GHz
Cache: 12M
Processor Graphics: Intel UHD Graphics
TDP: 15W

PC Case Options

Category	SATA Support
S20	Yes
S10	Yes

Custom Options

Category	Description
GPIO	1
RS-485	2
