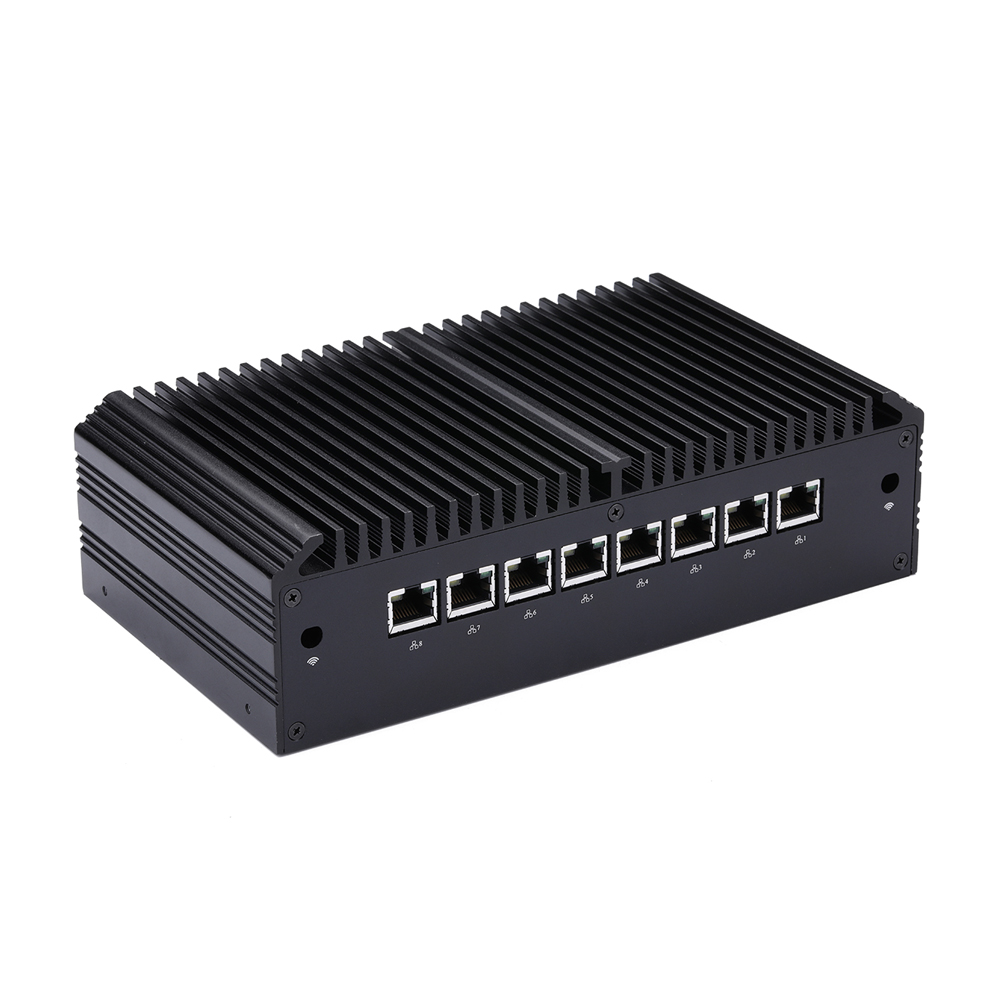

Mini PC K30400GE S10 Series
K30400GE multi-LAN mini PC with Intel 4th/5th Gen CPUs, 8× Intel LAN, rich I/O, and versatile storage—ideal for pfSense, VPN, firewall, and embedded network applications.
- Total of Network Interfaces
- 8
- SFP(+)
- None
- 10G RJ45
- None
- 2.5G RJ45
- None
- 1G RJ45
- 8
- Serial Ports
- 1
Tell us the configuration and quantity you need.
Overview
Main Features
Intel 4th Haswell –U/Y Processor
Intel 5th Broadwell-U Processor
1 × HDMI
2 × USB 3.0, 4 × USB 2.0
1 × mSATA, 1 × Mini PCIe, 1 × M.2, 1 × SATA 3.0
1 × RS-232 (RJ-45)
8 × Intel I211-AT/I210-AT Gigabit LAN
Specifications
| Processor System | |
| CPU | Intel 4thHaswell –U/Y Processor ntel 5thBroadwell-U Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 8 × Intel I211-AT/I210-AT Gigabit LAN |
| Watch Dog | Yes |

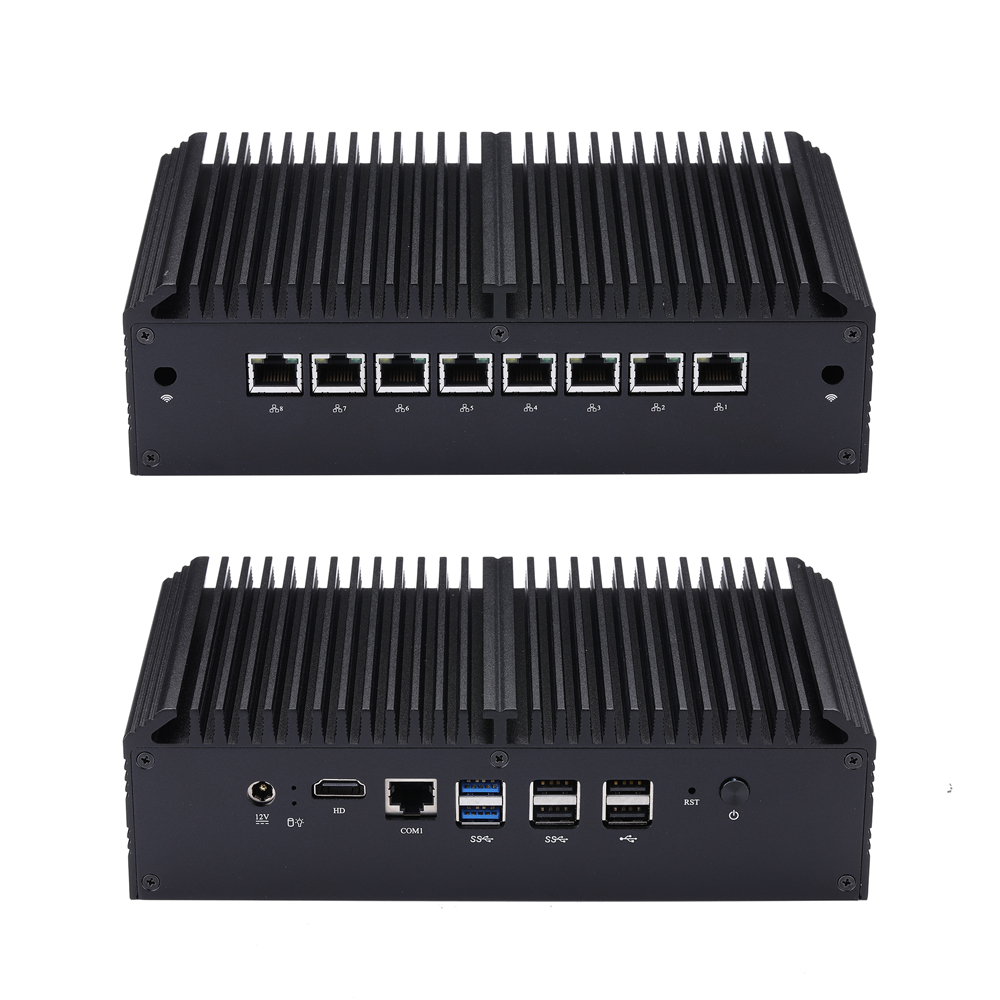

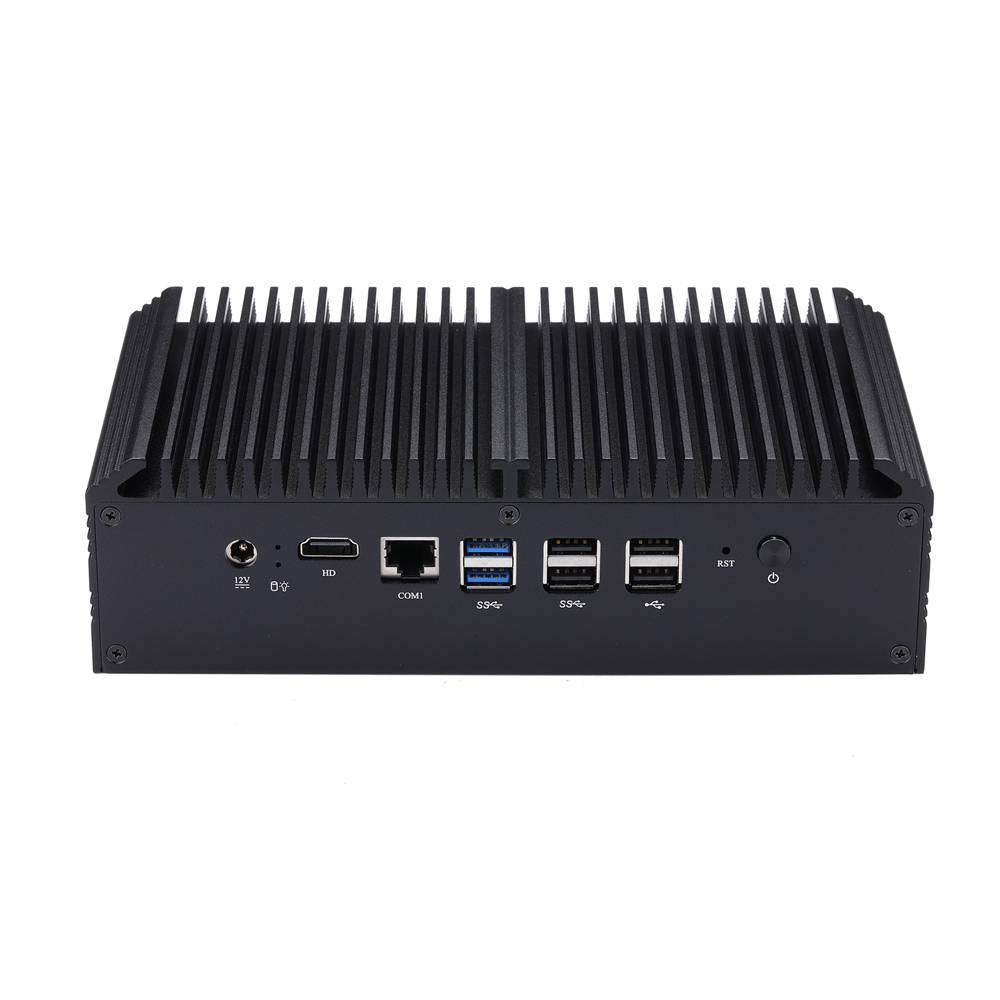

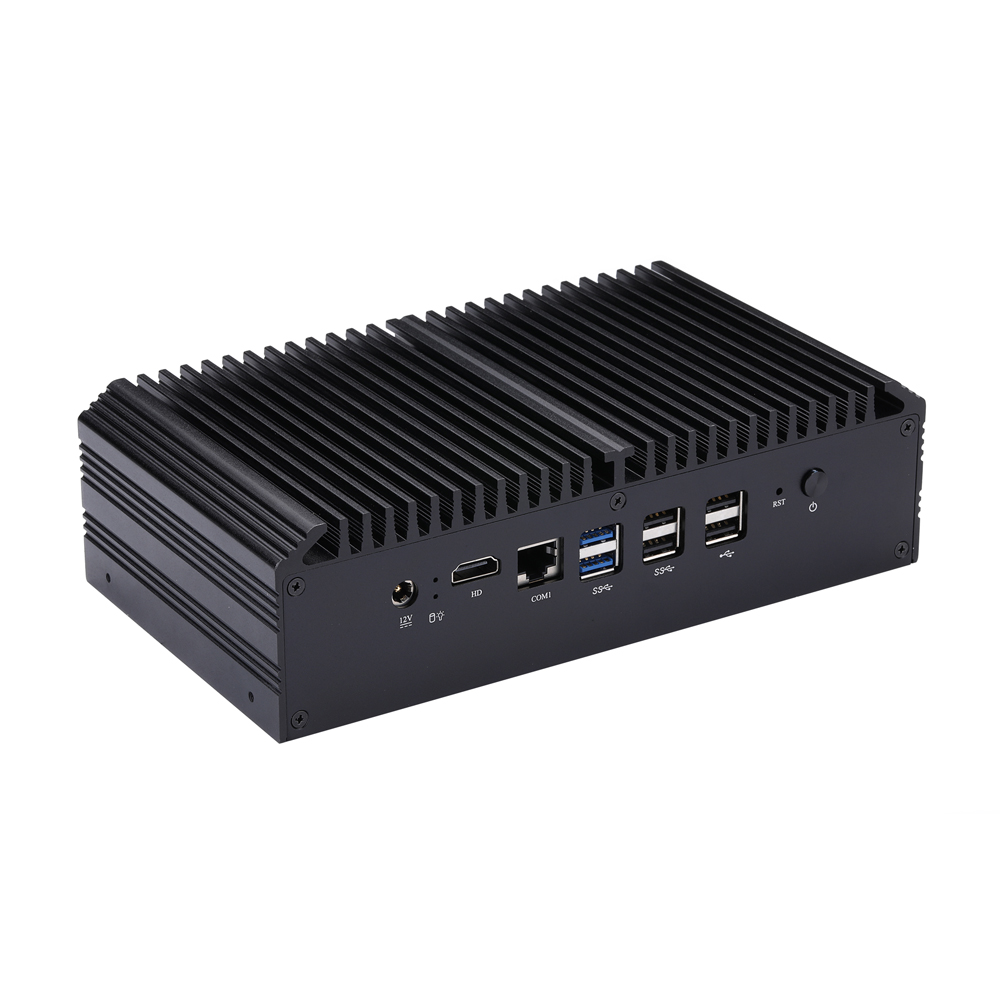

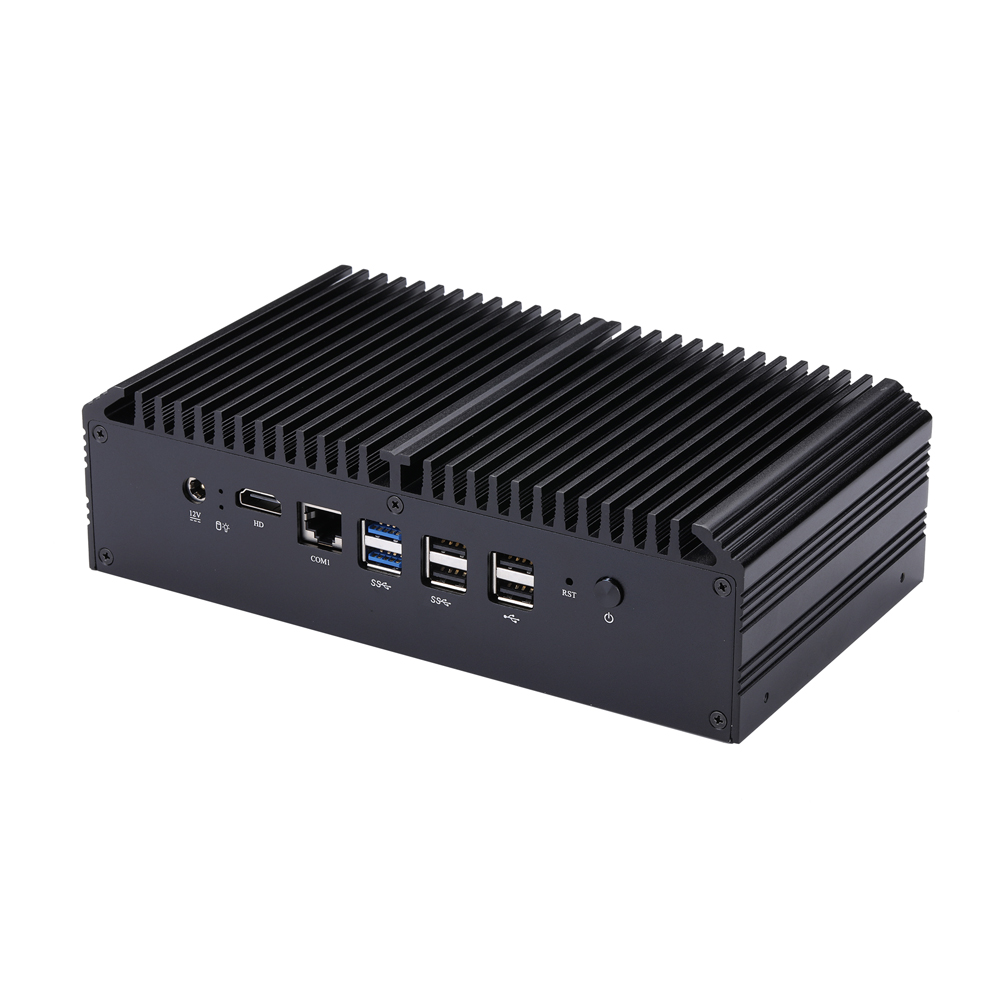

| Front I/O | |
| Power Button | 1 |
| Reset Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 2 × USB 3.0, 4 × USB 2.0 |
| Power | 1 × DC Jack |
| Video Output | 1 × HDMI |
| Serial Port | 1 × RS-232 Port (RJ-45) |

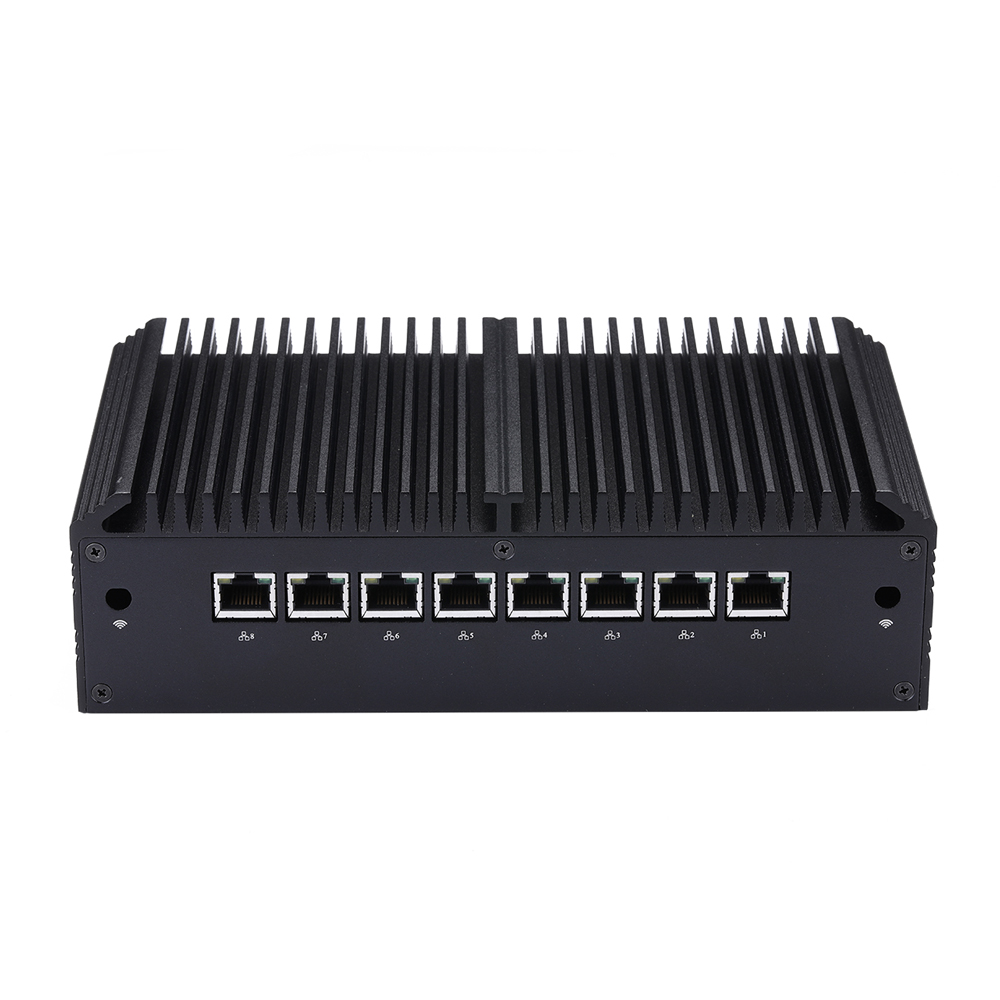

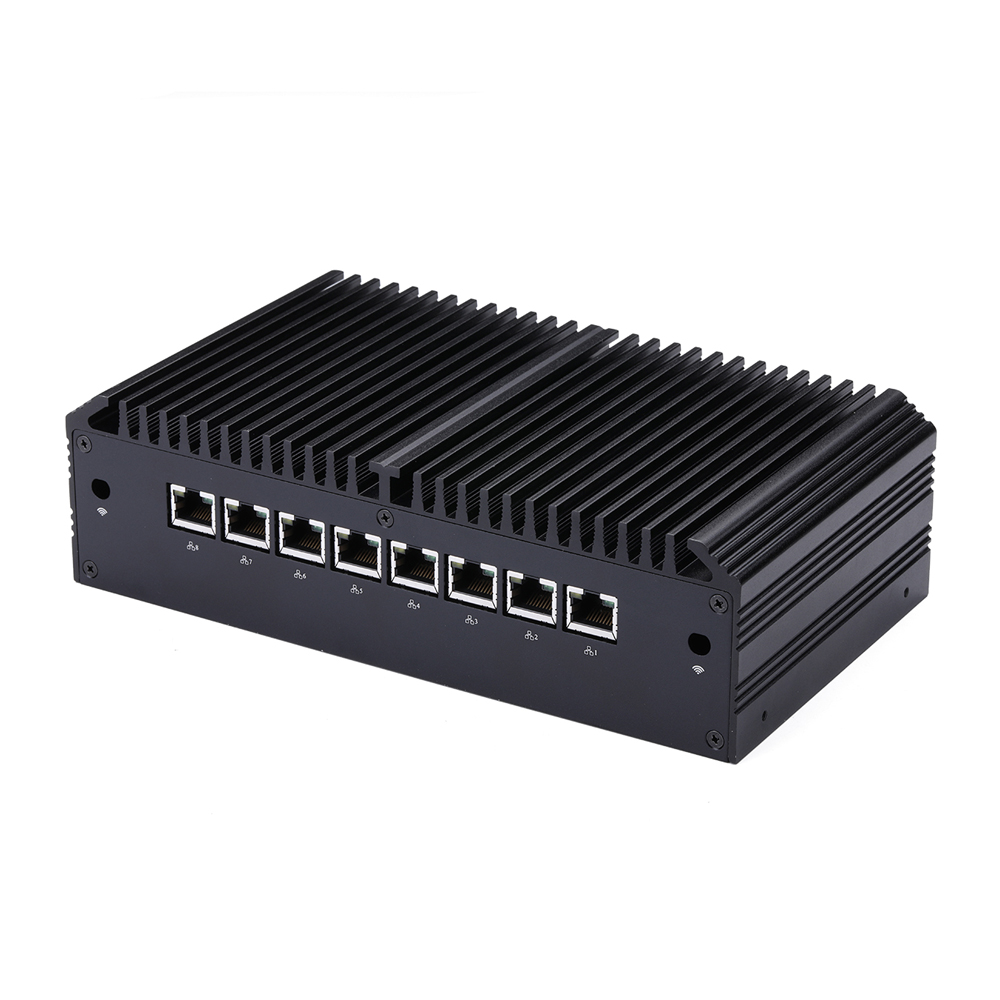

| Rear I/O | |
| LAN | 8 × Intel I211-AT/I210-AT Gigabit LAN |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × mSATA for SSD |
| Expansion | |
| Mini PCIe | 1 × Mini PCIe (Only Support USB Device) Full-length for 4G Half-length for Wi-Fi |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| CMOS Clear Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| Serial Port | 0 |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 0 |
| Power Requirement | |
| Power Adapter | 12V4A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 217 × 122 × 62mm |
| Weight | 1.35kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 285 × 260 × 93mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 7, Windows 8, Windows 10, Linux |
In the box
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ItemQuantity
- 1Mini PC1
- 2Silicone Mat4
- 3VESA Bracket1
- 4Screws for VESA Bracket1
- 5Power Adapter1
- 6AC Power Cord1
- 7Screws for SATA SSD/HDD1
- 8SATA cable for SSD/HDD1Option
- 9Antennas2Option
Models & options
Ordering and Specifications Information
Quick Order Model: K335GE-S10
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
K301GE (K30411GE) | S10 | Haswell | Celeron | 2955U | 2 | 2 | 1.4GHz | / | 2M | Intel HD Graphics | 15W |
K330GE (K30431GE) | S10 | Haswell | Core i3 | 4005U | 2 | 4 | 1.7GHz | / | 3M | Intel HD 4400 | 15W |
K350GE (K30451GE) | S10 | Haswell | Core i5 | 4200U | 2 | 4 | 1.6GHz | 2.6GHz | 3M | Intel HD 4400 | 15W |
K370GE (K30471GE) | S10 | Haswell | Core i7 | 4500U | 2 | 4 | 1.8GHz | 3.0GHz | 4M | Intel HD 4400 | 15W |
K330GEY (K30432GE) | S10 | Haswell | Core i3 | 4010Y | 2 | 4 | 1.3GHz | / | 3M | Intel HD 4200 | 11.5W |
K350GEY (K30452GE) | S10 | Haswell | Core i5 | 4200Y | 2 | 4 | 1.4GHz | 1.9GHz | 3M | Intel HD 4200 | 11.5W |
K305GE (K30511GE) | S10 | Broadwell | Celeron | 3205U | 2 | 2 | 1.5GHz | / | 2M | Intel HD Graphics | 15W |
K310GE (K30512GE) | S10 | Broadwell | Celeron | 3215U | 2 | 2 | 1.7GHz | / | 2M | Intel HD Graphics | 15W |
K320GE (K30521GE) | S10 | Broadwell | Pentium | 3805U | 2 | 2 | 1.9GHz | / | 2M | Intel HD Graphics | 15W |
K335GE (K30531GE) | S10 | Broadwell | Core i3 | 5005U | 2 | 4 | 2.0GHz | / | 3M | Intel HD 5500 | 15W |
K355GE (K30551GE) | S10 | Broadwell | Core i5 | 5200U | 2 | 4 | 2.2GHz | 2.7GHz | 3M | Intel HD 5500 | 15W |
K375GE (K30571GE) | S10 | Broadwell | Core i7 | 5500U | 2 | 4 | 2.4GHz | 3.0GHz | 4M | Intel HD 5500 | 15W |
K301GE
(K30411GE)
S10
- Case
- S10
- Code Name
- Haswell
- Processor Type
- Celeron
- Processor Number
- 2955U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.4GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 15W
K330GE
(K30431GE)
S10
- Case
- S10
- Code Name
- Haswell
- Processor Type
- Core i3
- Processor Number
- 4005U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 1.7GHz
- Max Turbo Frequency
- /
- Cache
- 3M
- Processor Graphics
- Intel HD 4400
- TDP
- 15W
K350GE
(K30451GE)
S10
- Case
- S10
- Code Name
- Haswell
- Processor Type
- Core i5
- Processor Number
- 4200U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 1.6GHz
- Max Turbo Frequency
- 2.6GHz
- Cache
- 3M
- Processor Graphics
- Intel HD 4400
- TDP
- 15W
K370GE
(K30471GE)
S10
- Case
- S10
- Code Name
- Haswell
- Processor Type
- Core i7
- Processor Number
- 4500U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 1.8GHz
- Max Turbo Frequency
- 3.0GHz
- Cache
- 4M
- Processor Graphics
- Intel HD 4400
- TDP
- 15W
K330GEY
(K30432GE)
S10
- Case
- S10
- Code Name
- Haswell
- Processor Type
- Core i3
- Processor Number
- 4010Y
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 1.3GHz
- Max Turbo Frequency
- /
- Cache
- 3M
- Processor Graphics
- Intel HD 4200
- TDP
- 11.5W
K350GEY
(K30452GE)
S10
- Case
- S10
- Code Name
- Haswell
- Processor Type
- Core i5
- Processor Number
- 4200Y
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 1.4GHz
- Max Turbo Frequency
- 1.9GHz
- Cache
- 3M
- Processor Graphics
- Intel HD 4200
- TDP
- 11.5W
K305GE
(K30511GE)
S10
- Case
- S10
- Code Name
- Broadwell
- Processor Type
- Celeron
- Processor Number
- 3205U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.5GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 15W
K310GE
(K30512GE)
S10
- Case
- S10
- Code Name
- Broadwell
- Processor Type
- Celeron
- Processor Number
- 3215U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.7GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 15W
K320GE
(K30521GE)
S10
- Case
- S10
- Code Name
- Broadwell
- Processor Type
- Pentium
- Processor Number
- 3805U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.9GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 15W
K335GE
(K30531GE)
S10
- Case
- S10
- Code Name
- Broadwell
- Processor Type
- Core i3
- Processor Number
- 5005U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 2.0GHz
- Max Turbo Frequency
- /
- Cache
- 3M
- Processor Graphics
- Intel HD 5500
- TDP
- 15W
K355GE
(K30551GE)
S10
- Case
- S10
- Code Name
- Broadwell
- Processor Type
- Core i5
- Processor Number
- 5200U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 2.2GHz
- Max Turbo Frequency
- 2.7GHz
- Cache
- 3M
- Processor Graphics
- Intel HD 5500
- TDP
- 15W
K375GE
(K30571GE)
S10
- Case
- S10
- Code Name
- Broadwell
- Processor Type
- Core i7
- Processor Number
- 5500U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 2.4GHz
- Max Turbo Frequency
- 3.0GHz
- Cache
- 4M
- Processor Graphics
- Intel HD 5500
- TDP
- 15W
PC Case Options
| Category | SATA Support |
| S10 | Yes |
| S13 | Yes |
| S20 | Yes |
| 1U05 | Yes |
Custom Options
| Category | Description |
| USB 2.0 | 1 |
| Serial Port | 5 × RS-232, DB9 |
| GPIO | 1 |
| VGA | 1 |
| RS-485 | 2 |
