Mini PC K31200X S10 Series
K31200X mini PC with 6 COM ports and dual 2.5G LAN is ideal for industrial automation, control systems, and serial device communication.
Tell us the configuration and quantity you need.
Overview
Main Features
Intel 12th Alder Lake–P Processor
Intel 13th Raptor Lake–P Processor
1 × Display Port, 2 × HDMI, 1 × VGA
3 × USB 3.0, 5 × USB 2.0
3 × M.2, 1 × SATA 3.0
6 × RS-232
2 × Intel I225-V/I226-V 2.5 Gigabit LAN
Specifications
| Processor System | |
| CPU | Intel 12th Alder Lake–P Processor Intel 13th Raptor Lake–P Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR4 SO-DIMM Socket (Up to 32G, 3200MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

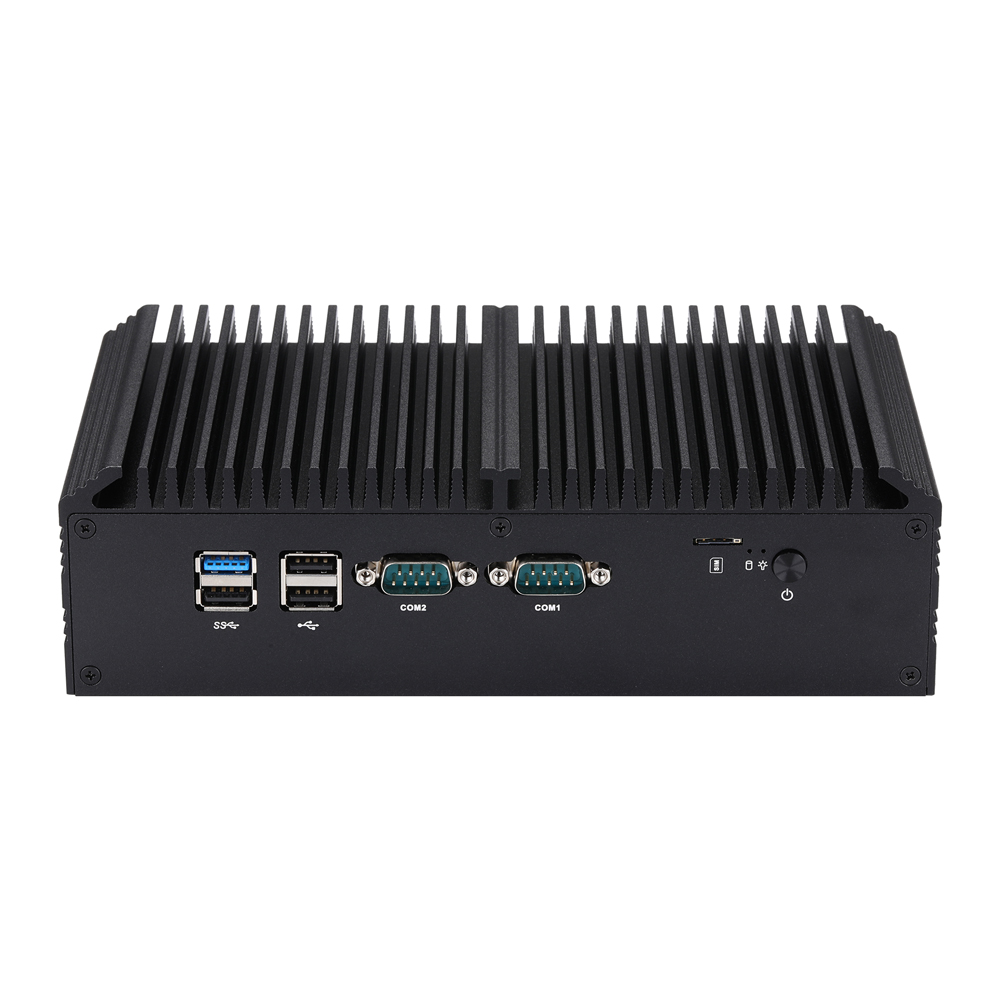

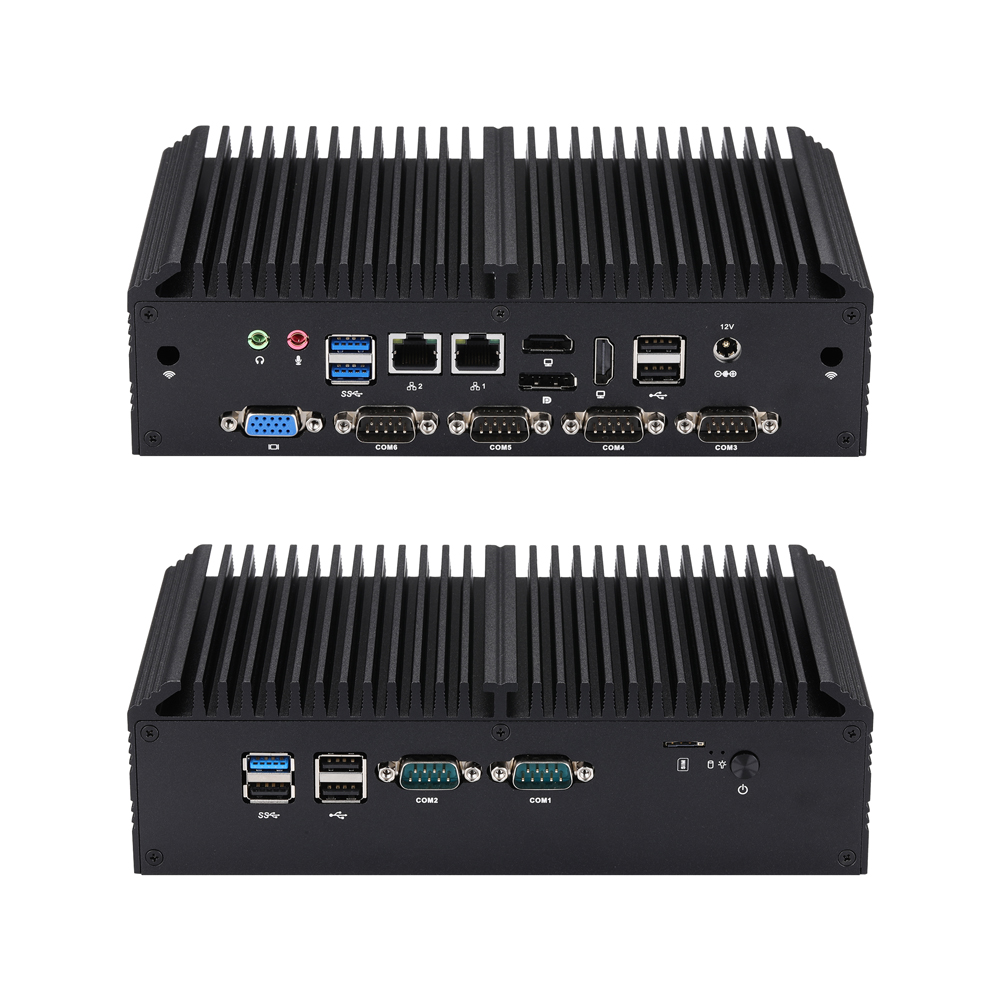

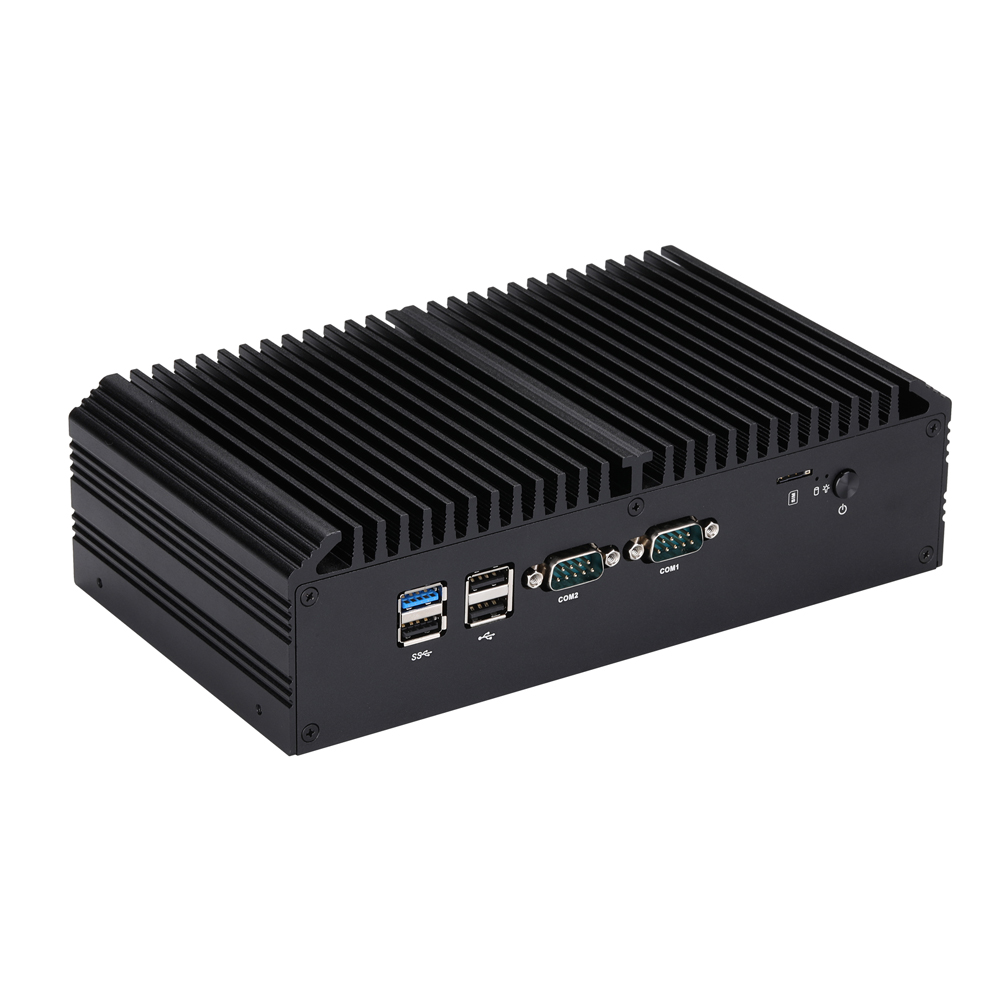

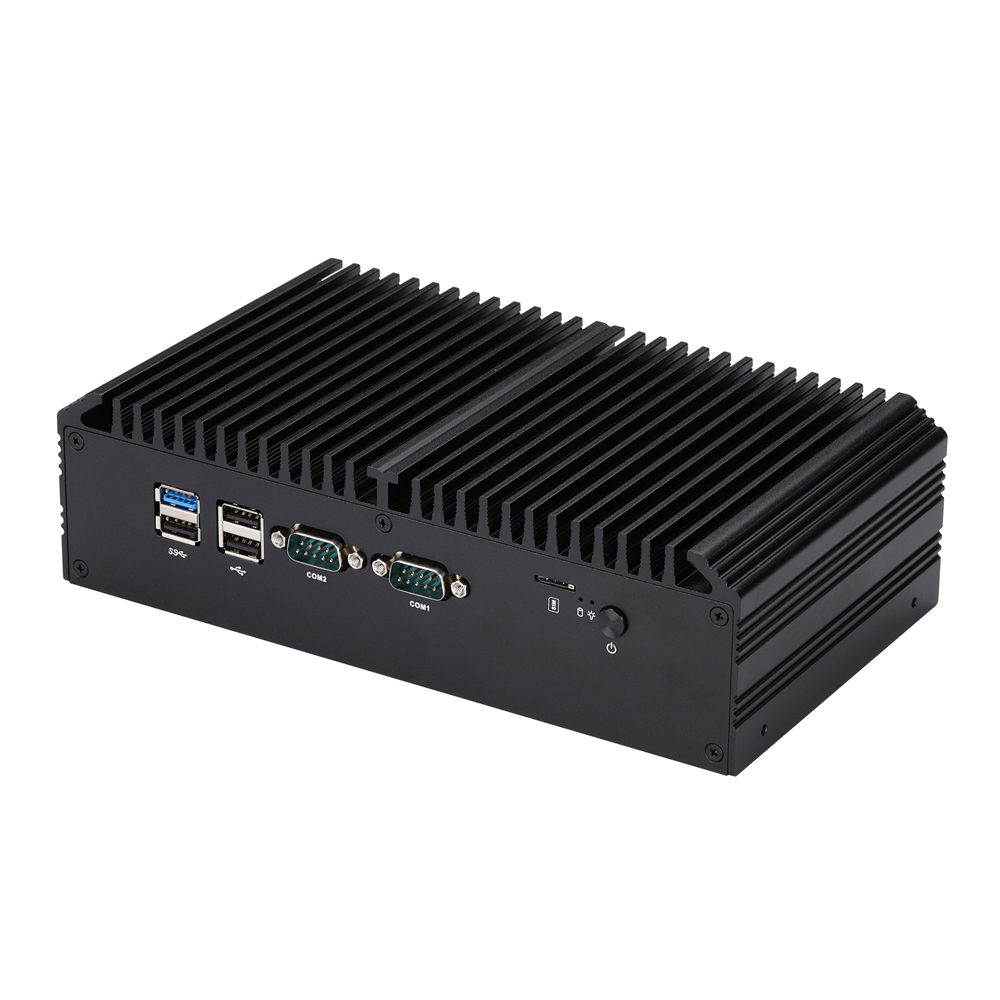

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 1 × USB 3.0, 3 × USB 2.0 |
| Serial Port | 2 × RS-232 (COM1/2 Support 5V/12V) |
| SIM Card Slot | 1 |

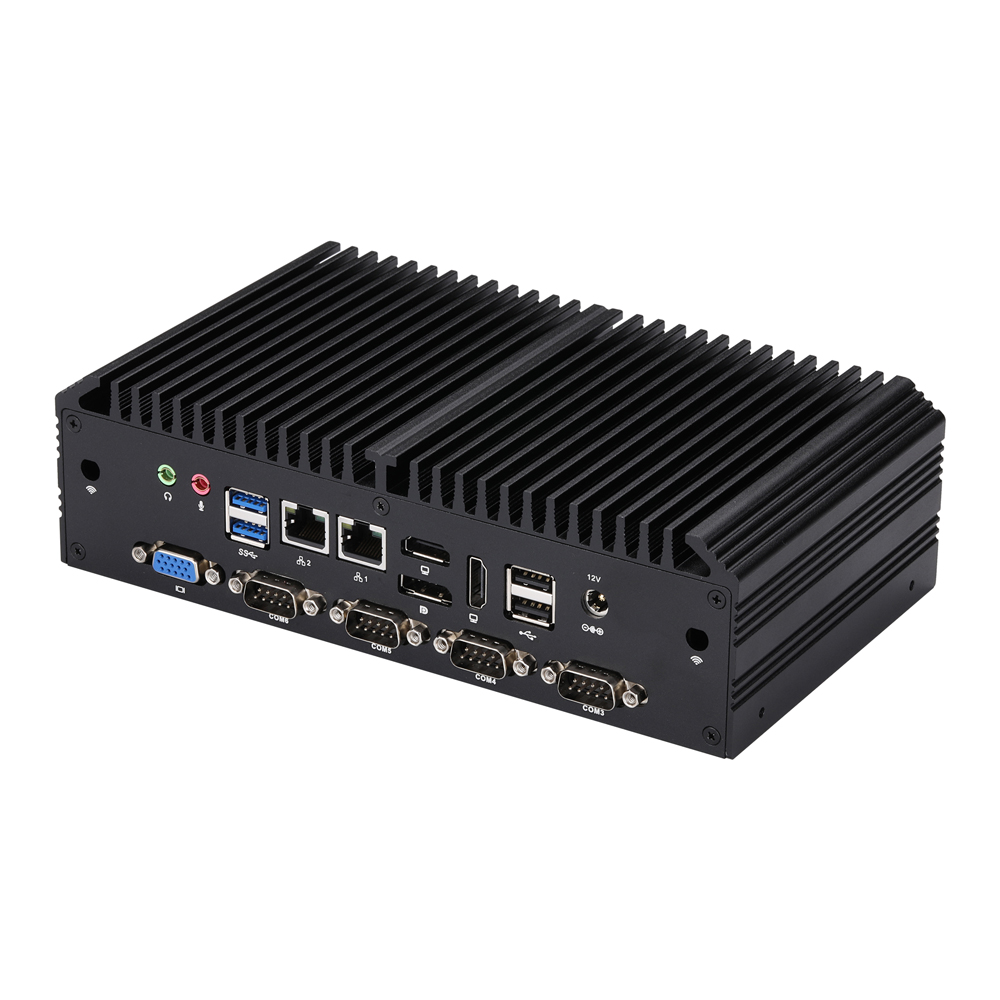

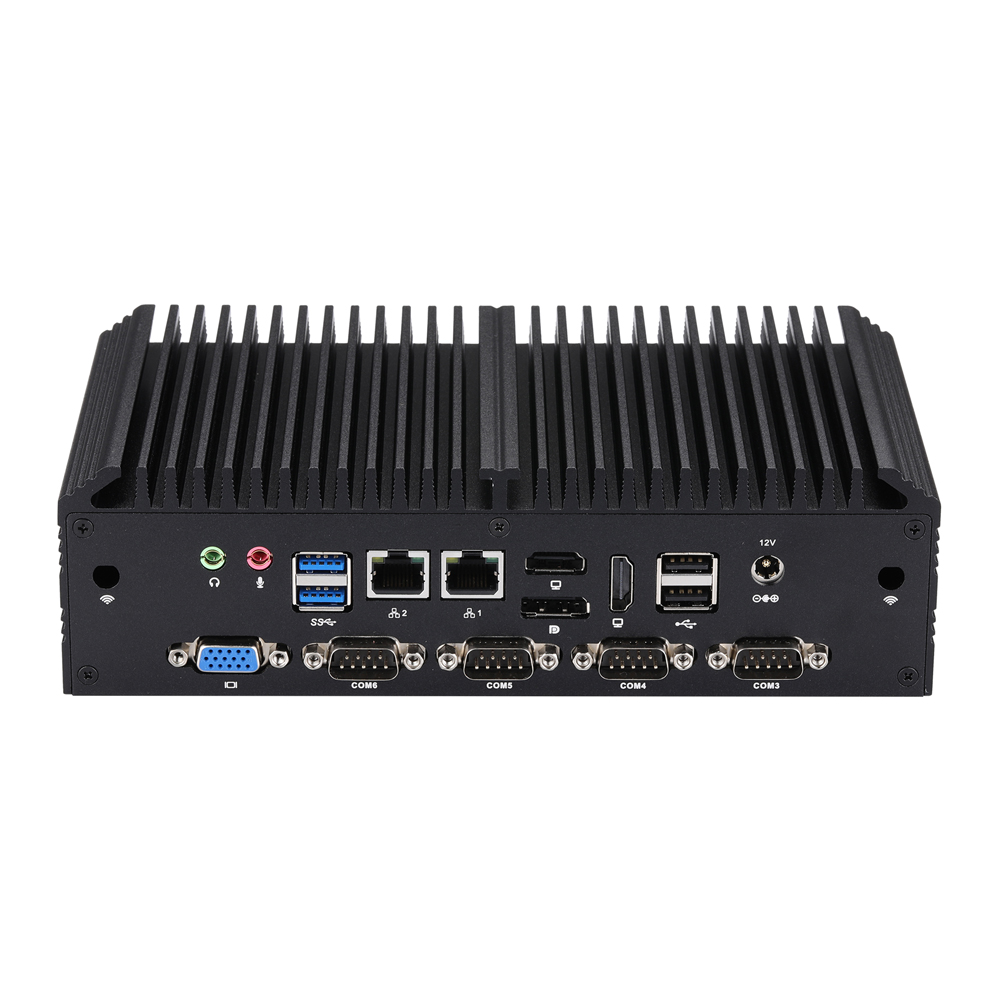

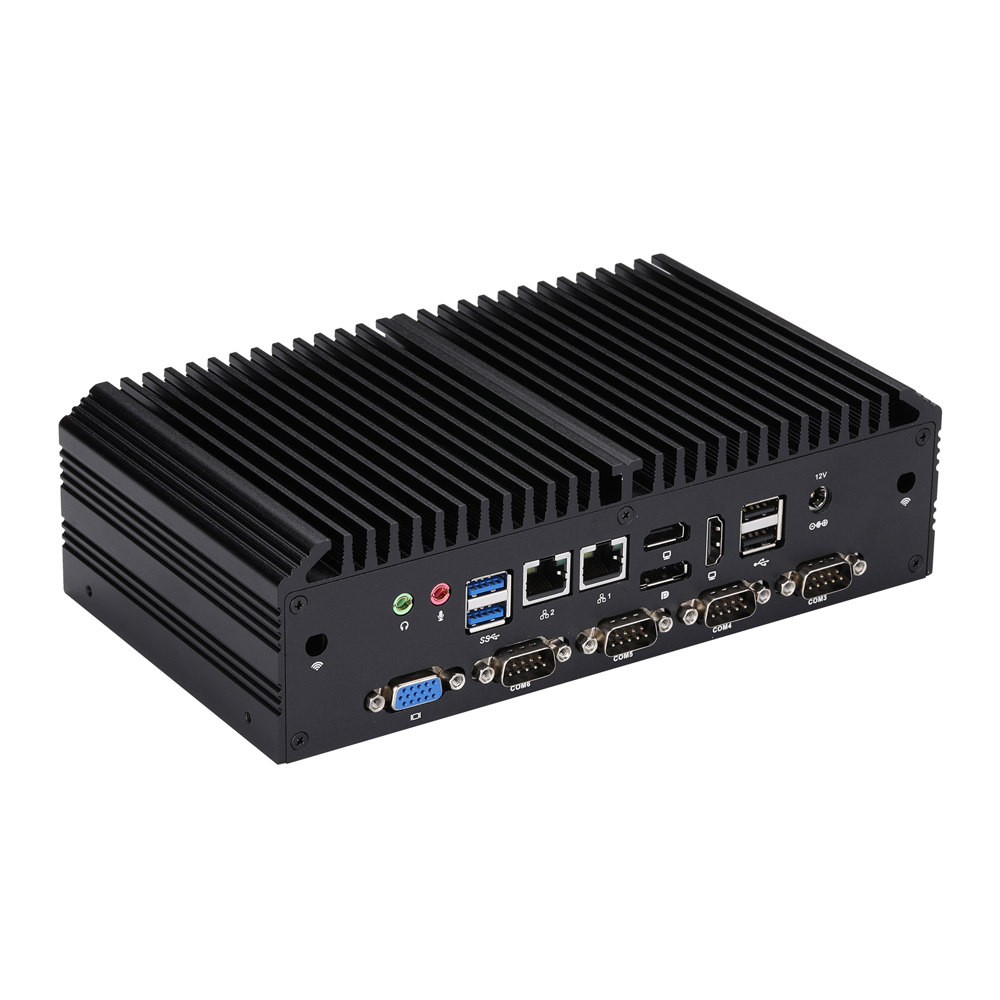

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 1 × Display Port, 2 × HDMI, 1 × VGA |
| LAN | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| USB | 2 × USB 3.0, 2 × USB 2.0 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Serial Port | 4 × RS-232 |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) |
| Expansion | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230) 1 × M.2 for 4G/5G (B key, Type: 3042/3052) |
| SIM Card Slot | 1 |
| AutoStart Jumper | 1, 2 × 5Pin, Pitch 2.54mm |
| CMOS Clear Jumper | 0 |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 2 × RS-232 (COM1/2 can be set up RS-485) |
| DC-in | 0 |
| Power Requirement | |
| Power Adapter | 19V4.74A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 217 × 122 × 62mm |
| Weight | 1.45kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 285 × 260 × 93mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design, Fan-assisted Cooling |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
In the box
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ItemQuantity
- 1Mini PC1
- 2Silicone Mat4
- 3VESA Bracket1
- 4Screws for VESA Bracket1
- 5Power Adapter1
- 6AC Power Cord1
- 7Screws for SATA SSD/HDD1
- 8SATA cable for SSD/HDD1Option
- 9Antennas2Option
Models & options
Ordering and Specifications Information
Quick Order Model: K31231X-S10
| Ordering Code | K31211X | K31221X | K31231X | K31251X | K31271X |
| Case | S10 | S10 | S10 | S10 | S10 |
| Code Name | Alder Lake U | Alder Lake U | Alder Lake U | Alder Lake U | Alder Lake U |
| Processor Type | Celeron | Pentium | Core i3 | Core i5 | Core i7 |
| Processor Number | 7305 | 8505 | 1215U | 1235U | 1255U |
| Total Cores | 5 | 5 | 6 | 10 | 10 |
| # of Performance-cores | 1 | 1 | 2 | 2 | 2 |
| # of Efficient-cores | 4 | 4 | 4 | 8 | 8 |
| # of Threads | 5 | 6 | 8 | 12 | 12 |
| Max Turbo Frequency | - | 4.40 GHz | 4.40 GHz | 4.40 GHz | 4.70 GHz |
| Performance-core Base Frequency | 1.10 GHz | 1.20 GHz | 1.20 GHz | 1.30 GHz | 1.70 GHz |
| Performance-core Max TurboFrequency | - | 4.40 GHz | 4.40 GHz | 4.40 GHz | 4.70 GHz |
| Efficient-core Base Frequency | 0.9 GHz | 0.9 GHz | 0.9 GHz | 0.9 GHz | 1.20 GHz |
| Efficient-core Max Turbo Frequency | - | 3.30 GHz | 3.30 GHz | 3.30 GHz | 3.50 GHz |
| Cache | 8M | 8M | 10M | 12M | 12M |
| Processor Graphics | Intel UHD Graphics | Intel UHD Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible |
| TDP | 15-55W | 15-55W | 15-55W | 15-55W | 15-55W |
| Ordering Code | K41231X | K41251X | K41271X | - | - |
| Case | S10 | S10 | S10 | - | - |
| Code Name | Alder Lake P | Alder Lake P | Alder Lake P | - | - |
| Processor Type | Core i3 | Core i5 | Core i7 | - | - |
| Processor Number | 1220P | 1240P | 1260P | - | - |
| Total Cores | 10 | 12 | 12 | - | - |
| # of Performance-cores | 2 | 4 | 4 | - | - |
| # of Efficient-cores | 8 | 8 | 8 | - | - |
| # of Threads | 12 | 16 | 16 | - | - |
| Max Turbo Frequency | 4.40 GHz | 4.40 GHz | 4.70 GHz | - | - |
| Performance-core Base Frequency | 1.50 GHz | 1.70 GHz | 2.10 GHz | - | - |
| Performance-core Max Turbo Frequency | 4.40 GHz | 4.40 GHz | 4.70 GHz | - | - |
| Efficient-core Base Frequency | 1.10 GHz | 1.20 GHz | 1.50 GHz | - | - |
| Efficient-core Max Turbo Frequency | 3.30 GHz | 3.30 GHz | 3.40 GHz | - | - |
| Cache | 12M | 12M | 18M | - | - |
| Processor Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible | - | - |
| TDP | 28-64W | 28-64W | 28-64W | - | - |
CaseS10
- K31211X
- S10
- K31221X
- S10
- K31231X
- S10
- K31251X
- S10
- K31271X
- S10
Code NameAlder Lake U
- K31211X
- Alder Lake U
- K31221X
- Alder Lake U
- K31231X
- Alder Lake U
- K31251X
- Alder Lake U
- K31271X
- Alder Lake U
Processor TypeCeleron
- K31211X
- Celeron
- K31221X
- Pentium
- K31231X
- Core i3
- K31251X
- Core i5
- K31271X
- Core i7
Processor Number7305
- K31211X
- 7305
- K31221X
- 8505
- K31231X
- 1215U
- K31251X
- 1235U
- K31271X
- 1255U
Total Cores5
- K31211X
- 5
- K31221X
- 5
- K31231X
- 6
- K31251X
- 10
- K31271X
- 10
# of Performance-cores1
- K31211X
- 1
- K31221X
- 1
- K31231X
- 2
- K31251X
- 2
- K31271X
- 2
# of Efficient-cores4
- K31211X
- 4
- K31221X
- 4
- K31231X
- 4
- K31251X
- 8
- K31271X
- 8
# of Threads5
- K31211X
- 5
- K31221X
- 6
- K31231X
- 8
- K31251X
- 12
- K31271X
- 12
Max Turbo Frequency-
- K31211X
- -
- K31221X
- 4.40 GHz
- K31231X
- 4.40 GHz
- K31251X
- 4.40 GHz
- K31271X
- 4.70 GHz
Performance-core Base Frequency1.10 GHz
- K31211X
- 1.10 GHz
- K31221X
- 1.20 GHz
- K31231X
- 1.20 GHz
- K31251X
- 1.30 GHz
- K31271X
- 1.70 GHz
Performance-core Max TurboFrequency-
- K31211X
- -
- K31221X
- 4.40 GHz
- K31231X
- 4.40 GHz
- K31251X
- 4.40 GHz
- K31271X
- 4.70 GHz
Efficient-core Base Frequency0.9 GHz
- K31211X
- 0.9 GHz
- K31221X
- 0.9 GHz
- K31231X
- 0.9 GHz
- K31251X
- 0.9 GHz
- K31271X
- 1.20 GHz
Efficient-core Max Turbo Frequency-
- K31211X
- -
- K31221X
- 3.30 GHz
- K31231X
- 3.30 GHz
- K31251X
- 3.30 GHz
- K31271X
- 3.50 GHz
Cache8M
- K31211X
- 8M
- K31221X
- 8M
- K31231X
- 10M
- K31251X
- 12M
- K31271X
- 12M
Processor GraphicsIntel UHD Graphics
- K31211X
- Intel UHD Graphics
- K31221X
- Intel UHD Graphics
- K31231X
- Intel UHD Graphics
- K31251X
- Intel Iris Xe Graphics eligible
- K31271X
- Intel Iris Xe Graphics eligible
TDP15-55W
- K31211X
- 15-55W
- K31221X
- 15-55W
- K31231X
- 15-55W
- K31251X
- 15-55W
- K31271X
- 15-55W
Ordering CodeK41231X
- K31211X
- K41231X
- K31221X
- K41251X
- K31231X
- K41271X
- K31251X
- -
- K31271X
- -
CaseS10
- K31211X
- S10
- K31221X
- S10
- K31231X
- S10
- K31251X
- -
- K31271X
- -
Code NameAlder Lake P
- K31211X
- Alder Lake P
- K31221X
- Alder Lake P
- K31231X
- Alder Lake P
- K31251X
- -
- K31271X
- -
Processor TypeCore i3
- K31211X
- Core i3
- K31221X
- Core i5
- K31231X
- Core i7
- K31251X
- -
- K31271X
- -
Processor Number1220P
- K31211X
- 1220P
- K31221X
- 1240P
- K31231X
- 1260P
- K31251X
- -
- K31271X
- -
Total Cores10
- K31211X
- 10
- K31221X
- 12
- K31231X
- 12
- K31251X
- -
- K31271X
- -
# of Performance-cores2
- K31211X
- 2
- K31221X
- 4
- K31231X
- 4
- K31251X
- -
- K31271X
- -
# of Efficient-cores8
- K31211X
- 8
- K31221X
- 8
- K31231X
- 8
- K31251X
- -
- K31271X
- -
# of Threads12
- K31211X
- 12
- K31221X
- 16
- K31231X
- 16
- K31251X
- -
- K31271X
- -
Max Turbo Frequency4.40 GHz
- K31211X
- 4.40 GHz
- K31221X
- 4.40 GHz
- K31231X
- 4.70 GHz
- K31251X
- -
- K31271X
- -
Performance-core Base Frequency1.50 GHz
- K31211X
- 1.50 GHz
- K31221X
- 1.70 GHz
- K31231X
- 2.10 GHz
- K31251X
- -
- K31271X
- -
Performance-core Max Turbo Frequency4.40 GHz
- K31211X
- 4.40 GHz
- K31221X
- 4.40 GHz
- K31231X
- 4.70 GHz
- K31251X
- -
- K31271X
- -
Efficient-core Base Frequency1.10 GHz
- K31211X
- 1.10 GHz
- K31221X
- 1.20 GHz
- K31231X
- 1.50 GHz
- K31251X
- -
- K31271X
- -
Efficient-core Max Turbo Frequency3.30 GHz
- K31211X
- 3.30 GHz
- K31221X
- 3.30 GHz
- K31231X
- 3.40 GHz
- K31251X
- -
- K31271X
- -
Cache12M
- K31211X
- 12M
- K31221X
- 12M
- K31231X
- 18M
- K31251X
- -
- K31271X
- -
Processor GraphicsIntel UHD Graphics
- K31211X
- Intel UHD Graphics
- K31221X
- Intel Iris Xe Graphics eligible
- K31231X
- Intel Iris Xe Graphics eligible
- K31251X
- -
- K31271X
- -
TDP28-64W
- K31211X
- 28-64W
- K31221X
- 28-64W
- K31231X
- 28-64W
- K31251X
- -
- K31271X
- -
Ordering and Specifications Information
Quick Order Model: K31231X-S10
| Ordering Code | K51251X | K51271X | K51291X |
| Case | S10 | S10 | S10 |
| Code Name | Alder Lake H | Alder Lake H | Alder Lake H |
| Processor Type | Core i5 | Core i7 | Core i9 |
| Processor Number | 12450H | 12650H | 12900H |
| Total Cores | 8 | 10 | 14 |
| # of Performance-cores | 4 | 6 | 6 |
| # of Efficient-cores | 4 | 4 | 8 |
| # of Threads | 12 | 16 | 20 |
| Max Turbo Frequency | 4.40 GHz | 4.70 GHz | 5.00 GHz |
| Performance-core Base Frequency | 2.00 GHz | 2.30 GHz | 2.50 GHz |
| Performance-core Max Turbo Frequency | 4.40 GHz | 4.70 GHz | 5.00 GHz |
| Efficient-core Base Frequency | 1.50 GHz | 1.70 GHz | 1.80 GHz |
| Efficient-core Max TurboFrequency | 3.30 GHz | 3.50 GHz | 3.80 GHz |
| Cache | 12M | 24M | 24M |
| Processor Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible |
| TDP | 45-95W | 45-115W | 45-115W |
CaseS10
- K51251X
- S10
- K51271X
- S10
- K51291X
- S10
Code NameAlder Lake H
- K51251X
- Alder Lake H
- K51271X
- Alder Lake H
- K51291X
- Alder Lake H
Processor TypeCore i5
- K51251X
- Core i5
- K51271X
- Core i7
- K51291X
- Core i9
Processor Number12450H
- K51251X
- 12450H
- K51271X
- 12650H
- K51291X
- 12900H
Total Cores8
- K51251X
- 8
- K51271X
- 10
- K51291X
- 14
# of Performance-cores4
- K51251X
- 4
- K51271X
- 6
- K51291X
- 6
# of Efficient-cores4
- K51251X
- 4
- K51271X
- 4
- K51291X
- 8
# of Threads12
- K51251X
- 12
- K51271X
- 16
- K51291X
- 20
Max Turbo Frequency4.40 GHz
- K51251X
- 4.40 GHz
- K51271X
- 4.70 GHz
- K51291X
- 5.00 GHz
Performance-core Base Frequency2.00 GHz
- K51251X
- 2.00 GHz
- K51271X
- 2.30 GHz
- K51291X
- 2.50 GHz
Performance-core Max Turbo Frequency4.40 GHz
- K51251X
- 4.40 GHz
- K51271X
- 4.70 GHz
- K51291X
- 5.00 GHz
Efficient-core Base Frequency1.50 GHz
- K51251X
- 1.50 GHz
- K51271X
- 1.70 GHz
- K51291X
- 1.80 GHz
Efficient-core Max TurboFrequency3.30 GHz
- K51251X
- 3.30 GHz
- K51271X
- 3.50 GHz
- K51291X
- 3.80 GHz
Cache12M
- K51251X
- 12M
- K51271X
- 24M
- K51291X
- 24M
Processor GraphicsIntel UHD Graphics
- K51251X
- Intel UHD Graphics
- K51271X
- Intel Iris Xe Graphics eligible
- K51291X
- Intel Iris Xe Graphics eligible
TDP45-95W
- K51251X
- 45-95W
- K51271X
- 45-115W
- K51291X
- 45-115W
PC Case Options
| Category | SATA Support |
| S10 | Yes |
| S20 | Yes |
Custom Options
| Category | Description |
| GPIO | 1 |
| RS-485 | 2 |
| PS2 | 2 |
| TPM 2.0 | 1 (Z32H330TC) |
