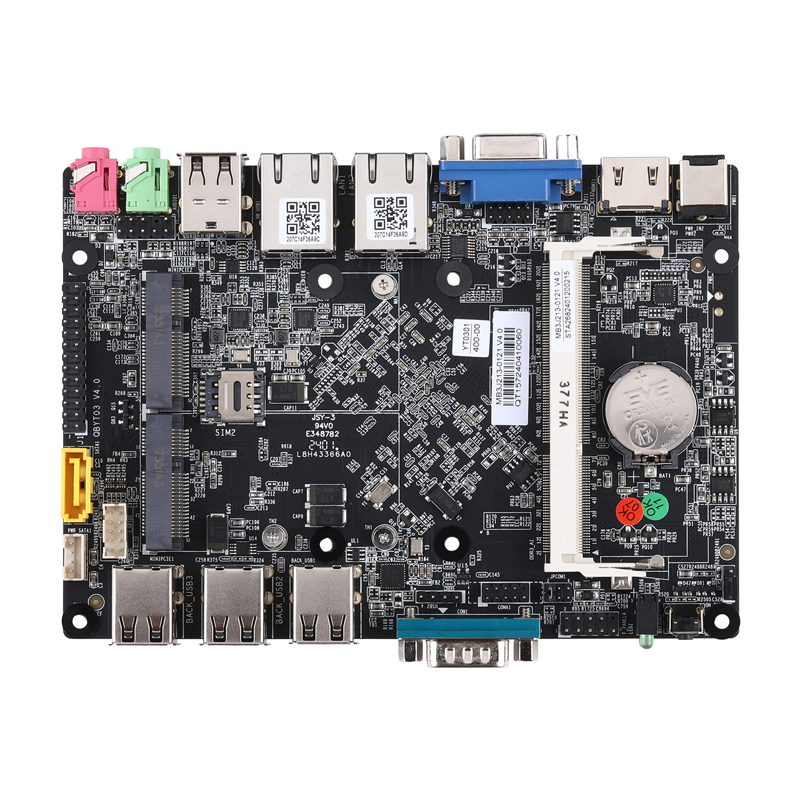

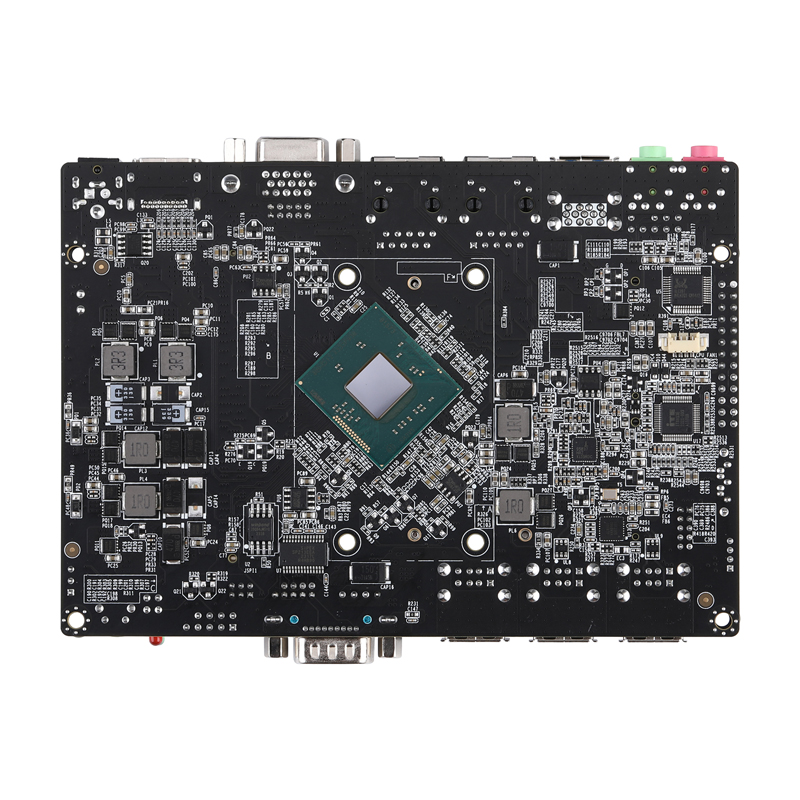

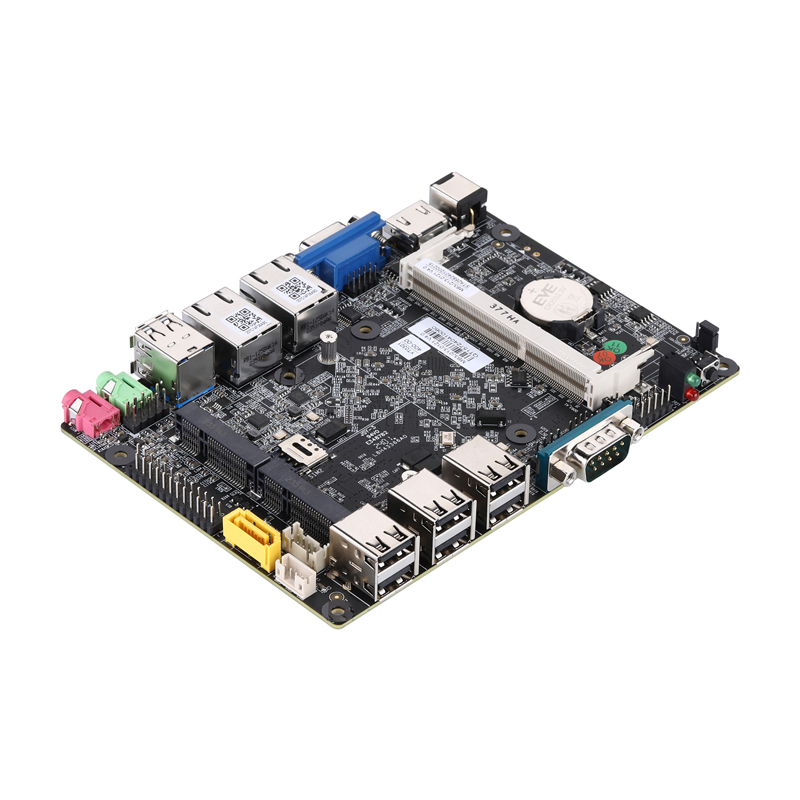

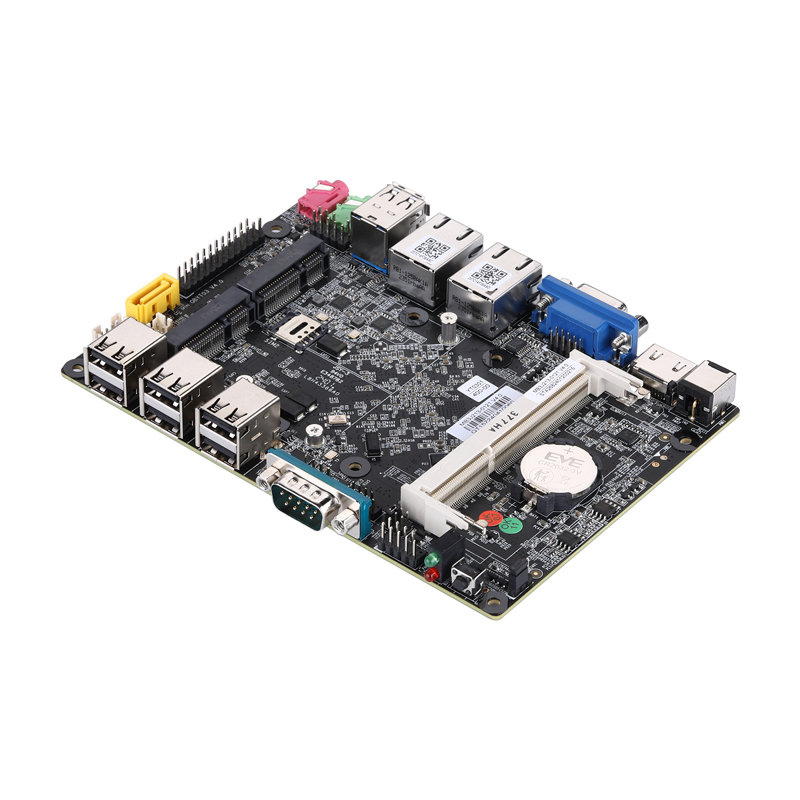

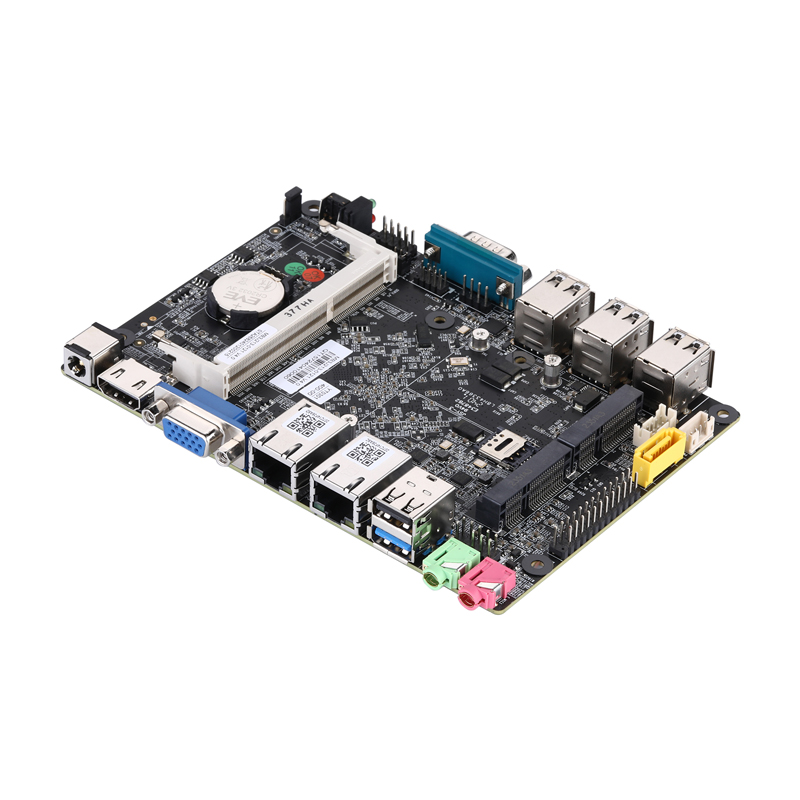

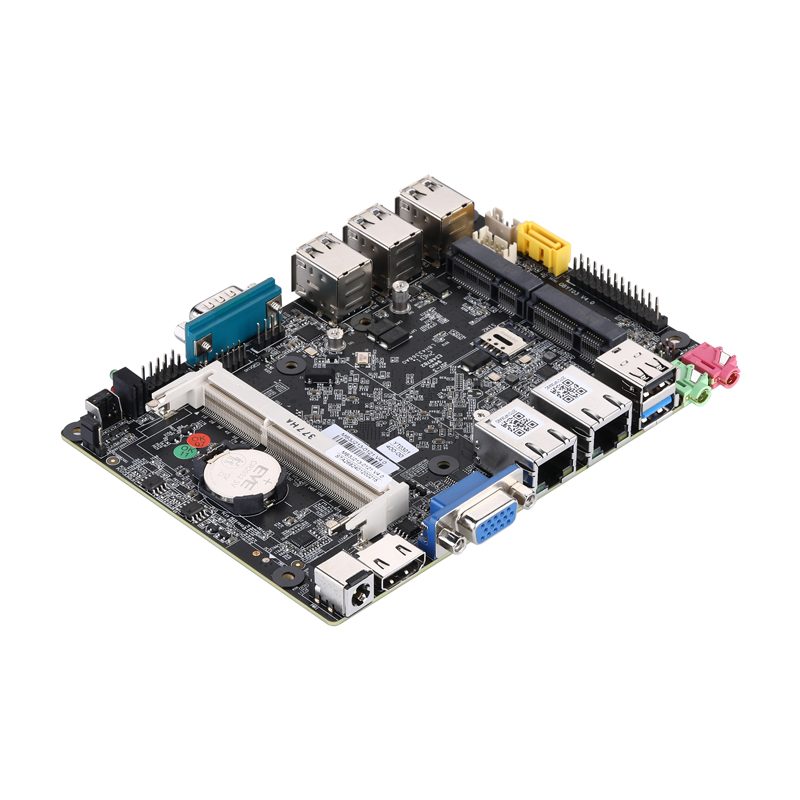

Motherboard MB3J213-0100 Series

MB3J213-0100 is a compact Intel Bay Trail motherboard with VGA/HDMI, rich USB ports, and dual LAN, ideal for fanless embedded systems, industrial control, and automation solutions.

Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

  • Intel Bay Trail Processor

  • 1 × VGA, 1 × HDMI, 1 × RS-232

  • 1 × USB 3.0, 7 × USB 2.0, 1 × SATA 3.0

  • 1 × Mini-PCIe, 1 × mSATA

  • 2 × Realtek Gigabit LAN

Specifications

Processor System
Dimension148 × 104mm
CPUIntel Bay Trail Processor
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
ChipsetBy CPU
BIOSUEFI
Expansion Slot
Mini-PCIe1 × Mini PCIe, Full-length Mini PCIe for 4G
Half-length Mini PCIe for Wi-Fi by Default
mSATA1 × Full-length Mini PCIe for SSD
Memory
TechnologyDDR3L 1333/1600MHz SDRAM
Max.8GB
Socket1 × SO-DIMM
Graphics
ControllerBy CPU
VRAMShared Memory
VGA1
HDMI1
Multi DisplayYes
Ethernet
Interface10/100/1000Mbps
Controller2 × Realtek Gigabit LAN
Connector2 × RJ-45
Audio
ControllerRealtek HD Audio
SATA
Max. Data Transfer RateSATA 3.0 (6.0Gb/S)
Accessories
AccessoriesCable for HDD
Real I/O
DC-IN1
VGA1
HDMI1
Ethernet2
USB1 × USB 3.0, 1 × USB 2.0
Audio2 (Line-out, Mic-in)
Front I/O
Power Button1
LED1 × Power LED, 1 × HDD LED
Serial Port1 × RS-232, Pin 9 supports 5V/12V
USB6 × USB 2.0
Internal Connector
VGA1, 2 × 5Pin, Pitch 2.0mm
Serial Port6, 2 × 13Pin, Pitch 2.54mm (Option)
Serial Port1, 2 × 5Pin, Pitch 2.0mm
RS-4850
SATA1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS Jumper0
GPIO Header1, 2 × 5Pin, Pitch 2.0mm
USB Header1, 1 × 4Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.54mm
Speakers Header1, 2 × 5Pin, Pitch 2.54mm
Power Header1, 1 × 2Pin, Pitch 5.5mm (Option)
Power Requirement
Input PWR12V DC in, 5.5mm/2.5mm
Environment
Operating Temperature0-50 ℃
OS Support
OSWindows 7, Windows 10, Linux

In the box

Packing List

NO.CategoryQuantityRemark
1Motherboard1
2HDD cable1
3Radiator1Option
4Fan1Option
5Serial cableSeveral Depending on the model
ItemQuantity
  • 1
    Motherboard
    1
  • 2
    HDD cable
    1
  • 3
    Radiator
    Option
    1
  • 4
    Fan
    Option
    1
  • 5
    Serial cable
    Depending on the model
    Several

Models & options

Ordering and Specifications Information

Quick Order Model: K1900G2-X

Ordering CodeCode NameProcessor TypeProcessor Number# of Cores# of Threads Base FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP

K1800G2-X

(MB3J213-0111)

Bay trailCeleronJ1800222.41Ghz2.58Ghz1MIntel HD Graphics10W

K1900G2-X

(MB3J213-0121)

Bay trailCeleronJ1900442.00Ghz2.42Ghz2MIntel HD Graphics10W
MB3J213-0122Bay trailCeleronN2920441.86Ghz2.00Ghz2MIntel HD Graphics7.5W
MB3J213-0123Bay trailCeleronN2930441.83Ghz2.16Ghz2MIntel HD Graphics7.5W

MB3J213-0125

(MB2J213-0134)

Bay trailPentiumN3540442.16Ghz2.66Ghz2MIntel HD Graphics7.5W

K1800G2-X

(MB3J213-0111)

Bay trail
Code Name
Bay trail
Processor Type
Celeron
Processor Number
J1800
# of Cores
2
# of Threads
2
Base Frequency
2.41Ghz
Max Turbo Frequency
2.58Ghz
Cache
1M
Processor Graphics
Intel HD Graphics
TDP
10W

K1900G2-X

(MB3J213-0121)

Bay trail
Code Name
Bay trail
Processor Type
Celeron
Processor Number
J1900
# of Cores
4
# of Threads
4
Base Frequency
2.00Ghz
Max Turbo Frequency
2.42Ghz
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
10W
MB3J213-0122Bay trail
Code Name
Bay trail
Processor Type
Celeron
Processor Number
N2920
# of Cores
4
# of Threads
4
Base Frequency
1.86Ghz
Max Turbo Frequency
2.00Ghz
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
7.5W
MB3J213-0123Bay trail
Code Name
Bay trail
Processor Type
Celeron
Processor Number
N2930
# of Cores
4
# of Threads
4
Base Frequency
1.83Ghz
Max Turbo Frequency
2.16Ghz
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
7.5W

MB3J213-0125

(MB2J213-0134)

Bay trail
Code Name
Bay trail
Processor Type
Pentium
Processor Number
N3540
# of Cores
4
# of Threads
4
Base Frequency
2.16Ghz
Max Turbo Frequency
2.66Ghz
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
7.5W
